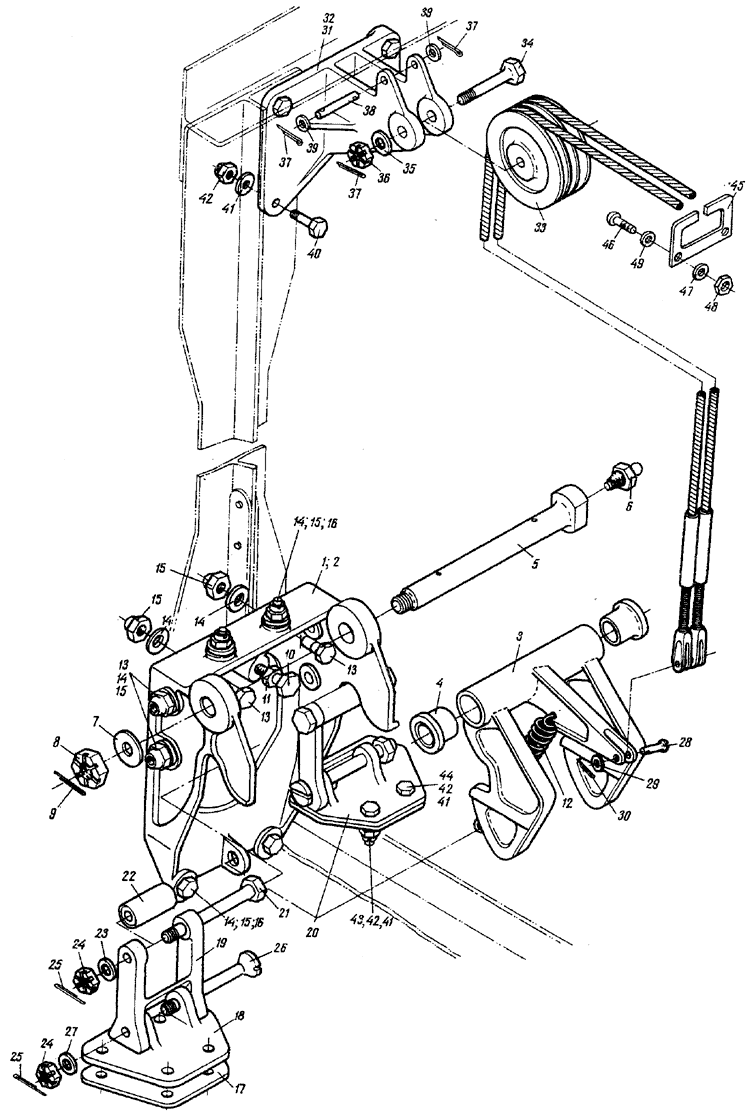

Fig. 9. MAIN L.G. UNIT DOOR LOCK



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  2S-4106-0-1 , (. 5.1, .I, .8)
MAIN L.G. UNIT DOOR
Lock, RIGHT (See 5.1, Fig. 1, Item No. 3)
I
  26-4108-0-2 , (.5.1, . I, . 85
MAIN L.G. UNIT DOOR
Lock, LEFT (See 5.1, Fig. 1, Item No. 8)
I
9 - 1 26-4108-140-1 . ,
Lock assy, right
I
  26-4108-140-2 . ,
Look assy, left
I
2 26-4108-36 ..
Lock body
I
3 24-4108-13O-1 .. ,
Hook , right
I
  24-4108-130-2 .. ,
Hook assy, left
I
4 24-4108-53 ...
Bush
2
5 24-4108-72 ..
Shaft, assy
I
6 2503A-2 ...
Lubricator
I
7 3402A-1,5-10-20 ..
Washer
I
8 3341A-10 ..
Nat
I
9 2,5x25-002
397-66
..
Cotter
Pin
I
10 24-4108-34 ..
Thrust
Bolt
I
11 3310A-6 ..
Nut
I
9 - 12 1922A-2,5-19-67 ..
Spring
I
13 3003A-6-24 .
Bolt
6
14 3401A-0,8-6-12 .
Washer
10
15 3373-6 .
Nut
10
16 3003-6-20 .
Bolt
4
17 24-4108-3 .
Gasket
8
18 24-4108-40-1 . ,
Suspension assy, right
I
  24-4108-40-2 . ,
Suspension assy, left
I
19 24-4108-44 ..
Suspension
I
20 24-4108-45-1 .. ,
Bracket, right
I
  24-4108-45-2 .. ,
Bracket, left
I
21 3027-7-54-3 ..
Bolt
I
22 24-4108-43 ..
Bush
I
23 3402A-1,5-6-12 ..
Washer
I
24 3341A-6 ..
Nut
2
25 1,5x20-002
397-66
..
Cotter
Pin
2
9 - 26 24-4108-5 ..
Bolt
I
27 3402A-1-6-12 ..
Washer
I
28 1340C5I-4-20-16 .
Pin
I
29 3401A-1-4-8 .
Washer
I
30 1,5x8-002
397-66
.
Cotter
Pin
I
31 24-4108-120-1 . ,
Bracket assy, right
I
  24-4108-120-2 . ,
Bracket assy, left
I
32 24-410&-12I-1 ..
Bracket, right
I
  24-4108-121-2 ..
Bracket, left
I
33 47250-40-7 ..
Pulley
2
34 3027-7-34-3 ..
Bolt
I
35 3402A-1,5-6-12 ..
Washer
I
36 3341A-6 ..
Nut
I
37 1,5x15-002
397-66
..
Cotter
Pin
3
38 258-36 ..
Guard
I
39 3401A-0,8-5-10 ..
Washer
2
40 3003-5-22 .
Bolt
7
41 3401A-0,8-5-10 .
Washer
11
9 - 42 3373A-5 .
Nut
11
43 3003A-5-20 .
Bolt
8
44 3003A-5-18 .
Bolt
4
45 24-4108-9 .
Cable reetrictor
I
46 3166A-3-14 . Screw 2
47 3402A-1-3-7 .
Washer
2
48 3373-3 .
Nut
2
49 310AH-4-10 .
Washer
2
