-26


     2 ( 2 - 1 146)

. 2. ( 5 . 1)

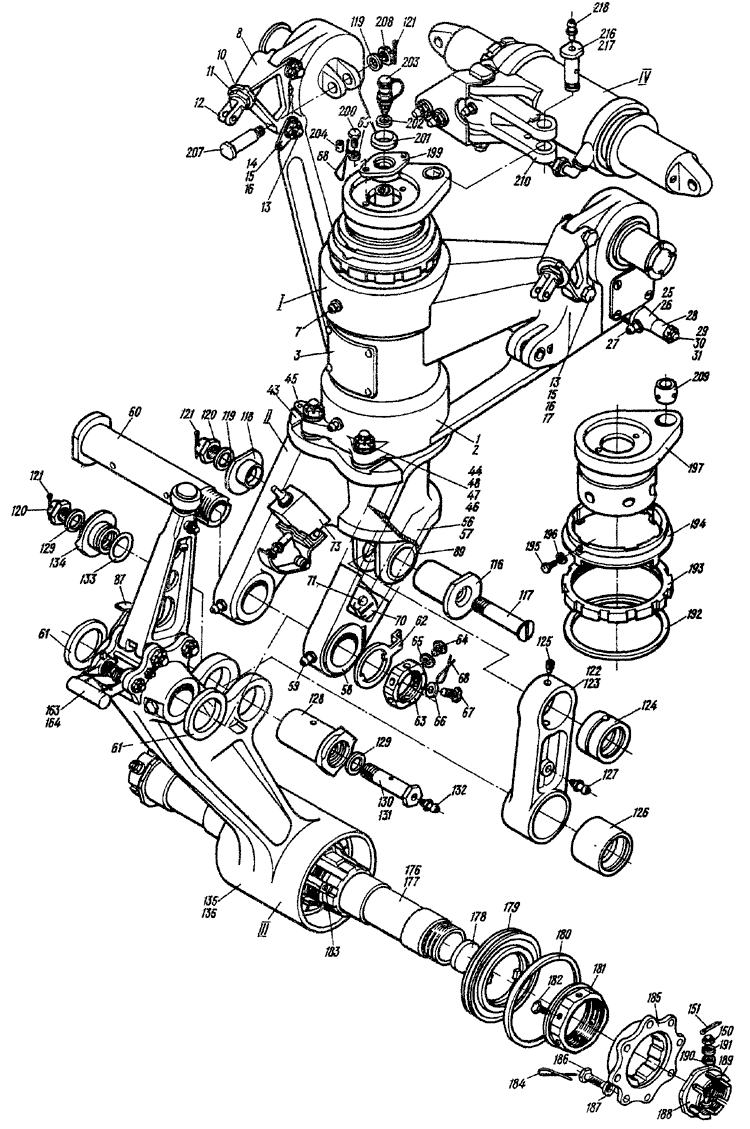

Fig. 2. NOSE L.G. SHOCK STRUT (Sheet 1 of 5)



. 2. ( 5 . 2)

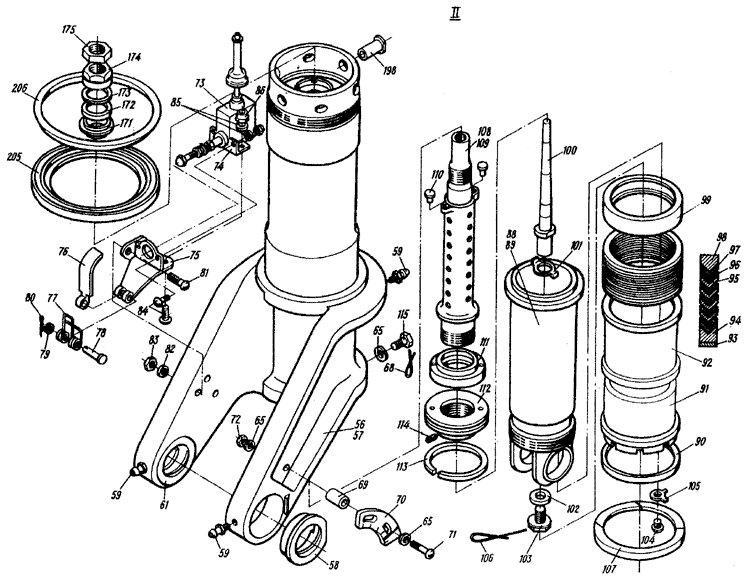

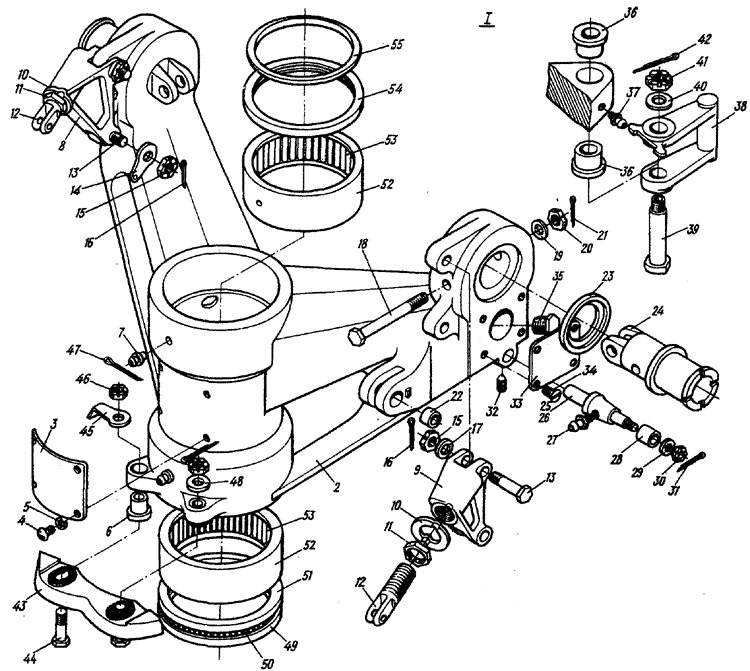

Fig. 2. NOSE L.G. SHOCK STRUT (Sheet 2 of 5)



. 2. ( 5 . 3)

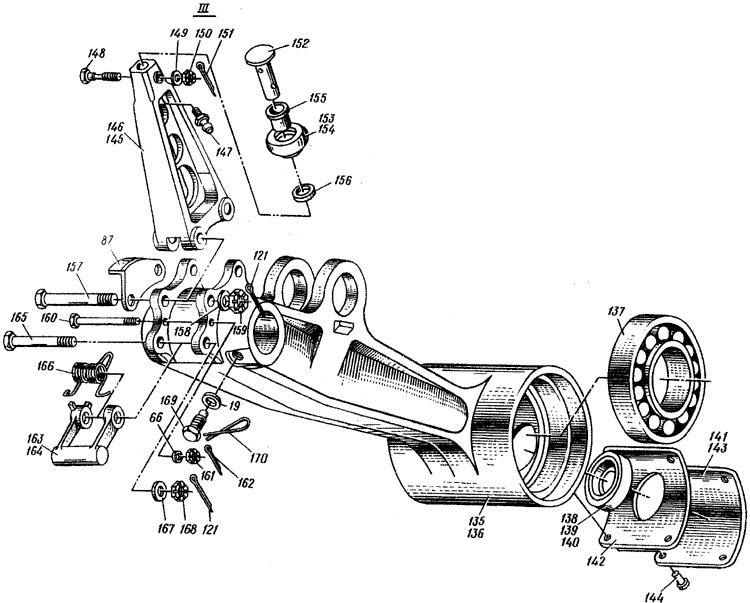

Fig. 2. NOSE L.G. SHOCK STRUT (Sheet 3 of 5)



. 2. ( 5 . 4)

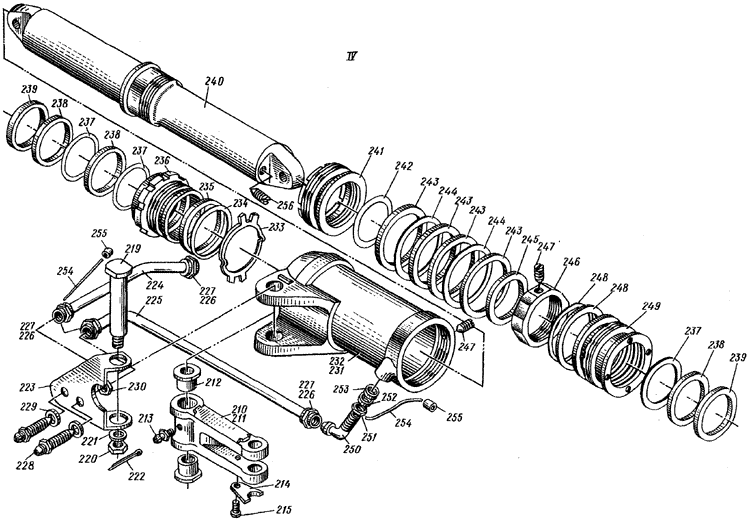

Fig. 2. NOSE L.G. SHOCK STRUT (Sheet 4 of 5)



. 2. ( 5 . 5)
Fig. 2. NOSE L.G. SHOCK STRUT (Sheet 5 of 5)



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-4201-300 (. 5.2, . I, . I)
NOUS LANDING GEAR SHOCK STRUT
(See 5.2, Fig. 1, Item Ho. 1)
I
2 - 1 24-4201-270 .
Cross-member, assy
I
2 24-4201-270-3
Cross-meaber
I
3 24-4201-49 ..
Inscription plate
I
4 3166-4-6 ..
Screw
4
5 465
6402-61
..
Spring
Washer
4
6 24-4201-75 ..
Bush
2
7 0-759 ..
Lubricator
2
8 24-4209-551-1 ..
Lever
I
9 24-4209-551-2 ..
Lever
I
10 24-4209-554 ..
Washer
2
11 24-4209-553 ..
Nut
2
12 24-4209-552 ..
Fork
2
13 3027-12-50-4 . .
Bolt
4
14 24-4201-276 ..
Washer
I
2 - 15 3341A-12
..
Nut
4
16 2,5x32-002
397-66
. .
Cotter Pin
4
17 3402A-2-12-22 ..
Washer
3
18 3027-10-128-4 ..
Bolt
2
19 3402A-1,5-10-20 ..
Washer
2
20 3341A-10 ..
Nut
2
21 2,5x25-002
397-66
..
Cotter
Pin
2
22 24-4201-277 ..
Bush
2
23 24-4201-274 ..
Washer
2
24 24-4201-272 ..
Trunnion
2
25 24-4201-130 ..
Pin, assy
2
26 24-4201-130-3 ...
Pin
2
27 2503A-1 ... -
Lubricator fitting, straight
2
28 24-4201-73 ..
Roller
2
29 3402A-1,5-8-14 ..
Washer
2
30 3341A-8 ..
Nut
2
31 2x20-002
397-66
..
Cotter Pin
2
2 - 32 M5x10 . 2-122
1476-64
..
Check Screw
2
33 24-4201-76 ..
Plug
2
34 3177A-4-8 ..
Screw
8
35 24-4201-318 ..
Plug
2
36 24-4201-74 ..
Bush
2
37 2503A-1 .. -
Lubricator fitting,straight
I
38 24-4201-85 ..
Holding clamp
I
39 24-4201-82 ..
Bolt
I
40 3402A-1,5-22-35 ..
Washer
I
41 33411-22 ..
Nut
I
42 3,2x60-002
397-66
..
Cotter Pin
I
43 24-4201-308 .
Centering device cam
I
44 3021A-10-38 .
Bolt
2
45 24-4201-184 .
Washer
I
46 24-4201-275 .
Nut
2
47 2,5x25-002
397-66
.
Cotter Pin
3
48 3402A-1,5-10-20 .
Washer
4
2 - 49 24-4201-165 .
Race
I
50 7,938+0,05-0,1mm
3722-60
.
Ball
53
51 24-4201-164 .
Race
I
52 24-4201-163 .
Race
2
53 4x40
6870-54
.
Needle-shaped, Roller
204
54 24-4201-161 . Guide
Bush
I
55 CT134-126-5
288-61
17-120-66
. -
Packing gland
I
56 24-4201-225 .
Cylinder asey
I
57 24-4201-225-3 ..
Cylinder
I
58 24-4201-354 ..
Bush
2
59 2503A-1 .. -
Lubricator fitting, straight
3
60 24-4201-111 .
Bolt
I
61 24-4201-455 .
Washer
2
62 24-4201-117 . -
Washer with pointer-type indicator
I
63 24-4201-25 .
Nut
I
64 3155A-5-8-182AT .
Screw
I
2 - 65 3402-0,5-5-10 ,
Washer
8
66 3402-1.5-5-10 .
Washer
2
67 3155-5-5-182 .
Screw
I
68 , 8-
792-67
.
Locking wire

AR

69 240857-5-14 .
Bush
2
70 24-4201-113 .
Scale
I
71 3166A-5-32 .
Screw
2
72 3373-5 .
Nut
2
73 24-4201-200 . ( )
Limit switch (nose L.G. steering interlocking system)
I
74 -702 ..
Limit switch
I
75 24-4201-212 ..
Bracket
I
76 24-4201-208 ..
Cleat
I
77 24-4201-209 ..
Spring
I
78 24-4201-210 ..
Pin
I
79 3401-0,5-3-6
Washer
I
80 1x6-002
397-66
..
Cotter Pin
I
2 - 81 -5-18 ..
Bolt
3
82 3401A-1,5-5-10 ..
Washer
3
83 3373-5 ..
Nut
3
84 3051A-4-14 ..
Bolt
4
85 3401A-0,5-4-7 ..
Washer
4
86 3373-4 ..
Nut
4
87 24-4201-211 ..
Bracket
I
88 24-4201-250 .
Rod, assy
I
89 24-4201-260 ..
Rod
I
90 CT110-100-8
288-61

17-120-66
(impregnated .
17-120-66)
..
Packing gland
I
91 24-4201-151 ..
Guide Bush
I
92 24-4201-146 ..
Locking Ring
I
93 24-4201-77 ..
Washer
I
94 24-4201-53 ..
Ring
I
95 24-4201-65 ..
Ring
4
2 - 96 24-4201-55 ..
Cup
5
97 24-4201-56 ..
Cup
2-
98 24-4201-54 ..
Ring
I
99 24-4201-157 . .
Axle bush
I
100 24-4201-266
Feedle
I
101 24-4201-67
Washer
I
102 3451-22-16,2-2 ..
Packing Ring
I
103 24-4201-261 ..
Bolt
I
104 3162-5-7 ..
Screw
I
105 24-4201-58 ..
Washer
I
106 Ѳ-
792-67
..
Locking wire

AR

107 24-4201-136 .
Ring
I
108 24-4201-240 .
Plunger, assy
I
109 24-4201-241 ..
Plunger
I
110 24-4201-220 ..
Peg
2
111 24-4201-47 ..
Valve
I
112 24-4201-42 ..
Piston
I
2 - 113 24-4201-44 ..
Piston ring
I
114 46 .2-122
1476-64
..
Check Screw
2
115 3003A-5-18-182AT .
Bolt
I
116 24-4201-233 .
Axle
I
117 3082-12-84-4,5 .
Bolt
I
118 24-4201-234 .
Cover
I
119 3402A-1,5-12-22 .
Washer
3
120 3336A-12 .
Nut
2
121 2,5x32-002
397-66
.
Cotter Pin
5
122 24-4201-235 .
Connecting Rod, assy
I
123 24-4201-236 ..
Connecting Rod
I
124 24-4201-237 ..
Bush
I
125 24-4201-239 ..
Screw
2
126 24-4201-238 ..
Bush
I
127 2503A-1 .. -
Lubricator fitting,straight
I
128 24-4201-231 .
Axle
I
129 34M51-20-12,2-2 .
Packing Ring
2
130 24-4201-265 .
Bolt assy
I
2 - 131 24-4201-265-3 ..
Bolt
I
132 2503-1 .. -
Lubricator fitting,straight
I
133 2186-26-2 .
Packing Ring
I
134 24-4201-232 .
Cover
I
135 24-4201-230 .
Lever, assy
I
136 24-4201-230-3 ..
Lever

137 7516 .. ( 100/4)
Taper Roller bearing (delivered according to 100/4)
2
138 24-4201-34 ..
Plug
I
139 24-4201-34-3 ...
Body
I
140 24-4201-34-5 ...
Cap
I
141 24-4201-35 ..
Plug, assy
T
142 24-4201-35-5 ...
Casket
I
143 24-4201-36 ...
Plug
I
144 3501-4-15 ..
Rivet
4
145 24-4201-39 .
Centering device Lever, assy
I
146 24-4201-39-3 ..
Lever
I
