-26

. 3.

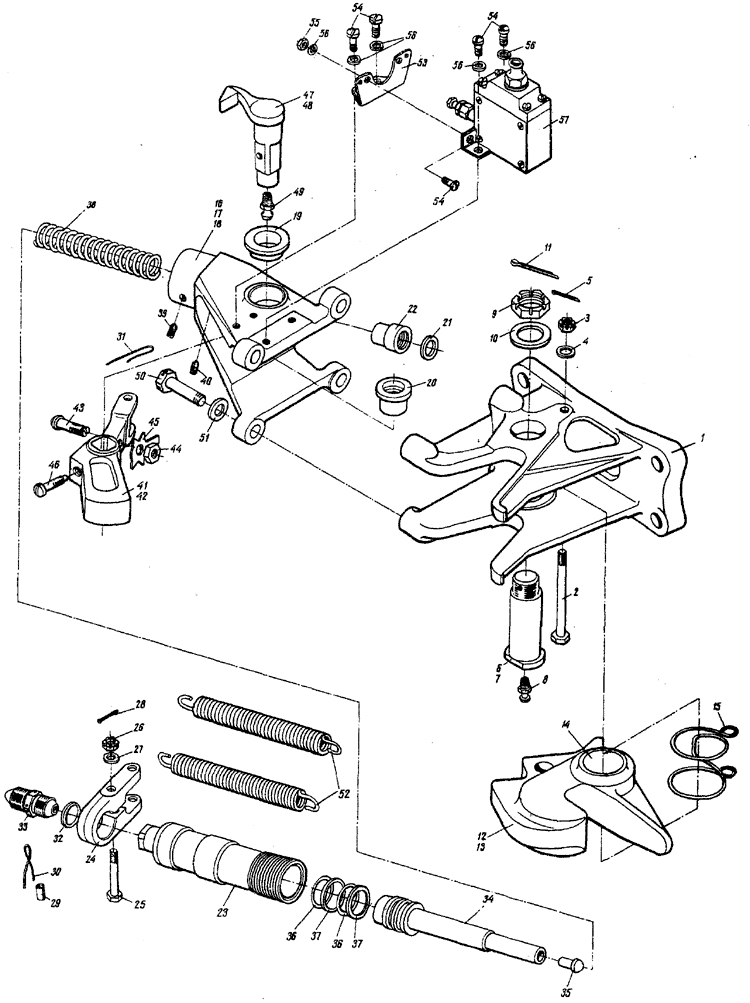

Fig. 3. NOSE L.G. DOWNLOCK



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-4202-100
(. 5.2, . I, . 16)
NOSE LANDING GEAR DOWHLOCK
(See 5.2, Fig. 1, Item N.16)
I
3 - 1 24-4202-109 .
Body
I
2 3017A-6-76 .
Bolt
I
3 3341A-6 .
Nut
I
4 3402A-1,5-6-12 .
Washer
I
5 1,5x20-002
397-66
.
Cotter pin
I
6 24-4202-31 .
Bolt, assy
I
7 24-4202-31-3 ..
Bolt
I
8 2503-2 .. -
Lubricator fitting, straight
I
9 3341A-20 .
Nut
I
10 3402A-1,5-20-35 .
Washer
I
II 3x50-002
397-66
.
Cotter pin
I
12 24-4202-135 .
Hook, assy
I
13 24-4202-135-3 ..
Hook
I
14 24-4202-21 ..
Bush
I
3-15 24-4202-7 , spring I
16 24-4202-195 .
Actuation cylinder, assy
I
17 24-4202-192 ..
Bracket, assy
I
18 24-4202-112 ...
Bracket
I
19 24-4202-13 ...
Bush
I
20 24-4202-14 ...
Bush
I
21 17-12-4
288-61
... -
Packing gland
I
22 24-4202-15 ...
Guide bush
I
23 24-4202-91 ..
Cylinder
I
24 24-4202-16 ..
Clamp
I
25 302-6-38-3 ..
Bolt
I
26 3341-6 ..
Nut
I
27 3402-2-6-12 ..
Washer
I
28 1,5x20-002
397-66
..
Cotter pin
I
29 2444 ..
Seal
I
Ѳ-
792-67
..
Locking wire

AR

3-31 KC1,5-
792-67
.
Locking wire

AR

32 2186A-176-2 ..
Packing ring
I
33 4679-6 ..
Threaded connection
I
34 24-4202-93 ..
Rod
I
35 24-4202-73 ..
Plug
I
36 2186A-19-1 ..
Packing ring
2
37 2187A-19 ..
ProtectiveWasher
2
38 24-4205-9 ..
Spring
I
39 3221A-4-6 ..
Screw
I
40 3221A-4-8 ..
Screw
2
41 24-4202-61
Letch, assy
I
42 24-4202-61-3 ...
Latch
I
43 24-4202-63 ...
Screw
I
44 3302-8 ...
Nut
I
45 3455-8 ...
Washer
I
46 820 .2-022
1478-64
..
CheckScrew
I
47 24-4202-81 .
Shaft, assy
I
48 24-4202-81-3 .. Shaft I
3 - 49 2503A-2 .. -
Lubricator fitting, straight
I -
50 24-4202-101 .
Bolt
4
51 3402A-1,5-10-18 .
Washer
4
52 1920A-2,5-18-140 .
Spring
2
53 24-4202-50 .
Bracket
I
54 3I66A-4-12 .
Screw
6
55 3320-4 .
Nut
2
56 465-
6402-61
.
SpringWasher
6
57 -702 .
Microswitch
I
