-26

. 5.

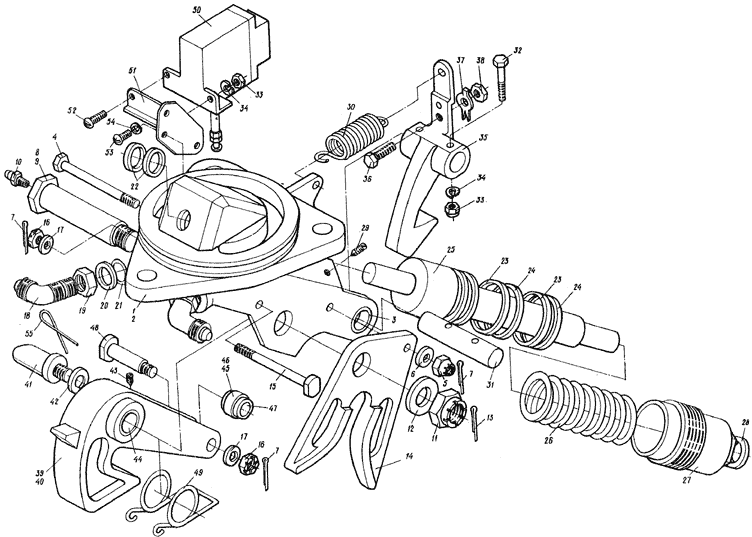

Fig. 5. NOSE L.G. UPLOCK



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-4205-400 (. 5.2, . 6, . I)
NOSE LASNDIG GEAR L (See 5.2, Fig. 6. Item N.1)
I
5 - 1 24-4205-430 .
Uplock
Body, assy
I
2 24-4205-430-3 ..
Body
I
3 24-4205-113 ..
Bush
2
4 3017A-6-64-3 .
Bolt
I
5 3336-6 .
Nut
I
6 3402A-1,5-6-12 .
Washer
I
7 1,5x20-002
397-66
.
Cotter pin
2
8 24-4205-102 .
Bolt, assy
I
9 24-4205-102-3 ..
Bolt
I
10 2503-2 .. -
Lubricator fitting, straight
I
11 3341A-12 .
Nut
I
12 3402A-1,5-12-22 .
Washer
I
13 2,5x30-002
397-66
.
Cotter pin
I
5 - 14 24-4205-108 .
Guide cheek
I
15 24-4205-406 .
Bolt
I
16 3341A-6 .
Nut
I
17 3402A-1-6-12 .
Washer
I
18 4691A-6 .
Connection
2
19 2196A-12x1,5 .
Nut
2
20 2198A-20 .
Fibroplastic Washer
2
21 2186A-176-2 .
Packing ring
2
22 2186A-11-1 .
Packing ring
2
23 2186A-21-1 .
Packing ring
2
24 2187A-21 .
Protective Washer
2
25 24-4205-420 .
Rod
I
26 4233A-4,5-28-113-11 .
Compression Spring
I
27 24-4205-403 .
Nut
I
28 CT18-11-3
288-61
. -
Packing gland
I
29 3221A-4-6 .
Screw
I
30 1920-2-16-62-11 .
Extension Spring
I
5 - 31 24-4205-107 .
Shaft
I
32 3027-4-22 .
Bolt
2
33 01-4 .
Nut
6
34 465
6402-61
.
Spring Washer
6
35 24-4205-414 .
Letch
I
36 3155-6-18 .
Screw
I
37 3463-6 .
Washer
I
38 3320-6 .
Nut
I
39 24-4205-440 .
Hook, assy
I
40 24-4205-461 ..
Hook
I
41 24-4205-442 ..
Bolt
I
42 3402-1-10-16 ..
Washer
I
43 3221-4-6 ..
Screw
I
44 24-4205-153 ..
Bush
I
45 24-4205-30 ..
Holler, assy
I
46 24-4205-31 ...
Roller
I
47 24-4205-32 ...
Bush
I
5 - 48 24-4205-103 ..
Bolt
I
49 24-4205-104 .
Spring
I
50 JDJ-702 .
Micro switch
I
51 24-4205-160 .
Bracket
I
52 3166A-4-11 .
Screw
4
53 3166A-5-10 .
Screw
3
54 565
6402-61
.
Spring Washer
3
55 Ѳ.8-
792-67
.
Locking wire

AR
