-26

. 6.

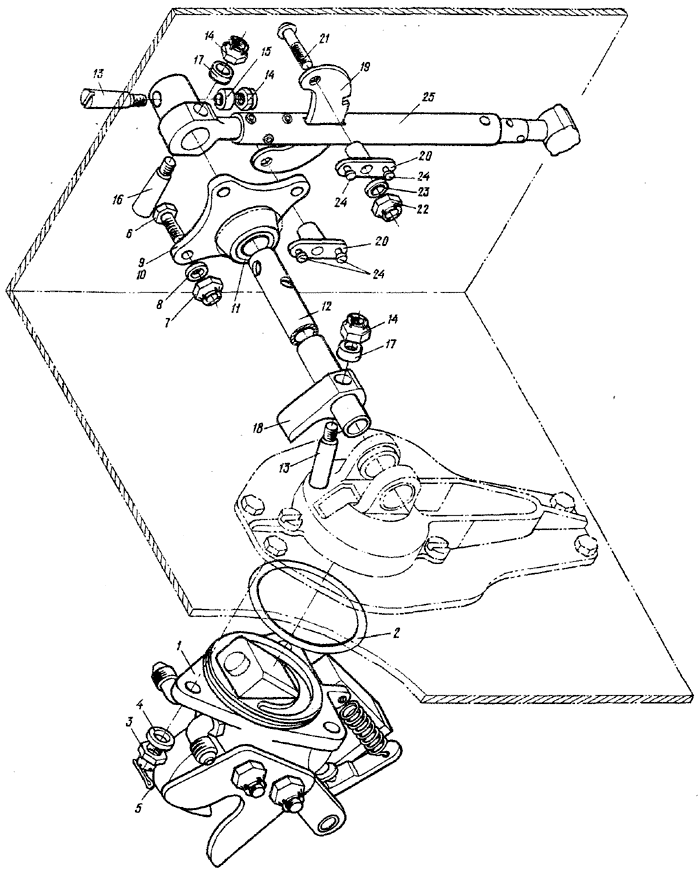

Fig. 6. NOSE L.G. UPLOCK ATTACHMENT FITTINGS



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-4205-300 (. 5.2, . I, . 33)
NOSE LANDING GEAR UPLOCK ATTACHMENT FITTINGS (See 5.2, Fig. 1, Item No. 33)
I
6 - 1 24-4205-400 . (. 5.2, . 5)
Nose L.G, uplock (See 5.2, Fig. 5)
I
2 2196A-200-2 .
Packing ring
I
3 3341A-10 .
Nut
3
4 3402A-1,5-10-20 .
Washer
3
5 2,5x30-002
397-66
.
Cotter pin
3
6 7 3017A-5-I6 .
Bolt
4
  3373-5 .
Nut
4
8 3401A-0,8-5-10 .
Washer
4
9 24-4205-310 .
Bracket, assy
I
10 24-4205-310-3 ..
Bracket
I
II 24-4205-311 ..
Bush
I
12 24-4205-305 .
Tube
I
6 - 13 3033-5-30 .
Taper Bolt
2
14 3373-4 .
But
3
15 1274050-2-5-32 .
Saddle Washer
I
16 3033-5-36 .
Taper Bolt
I
17 124950-4 .
Washer for taper Bolt
2
18 24-4205-312 .
Tappet
I
19 24-4205-301 .
Shackle
I
20 24-4200-101 .
Stanchion
2
21 3051-6-36 .
Bolt
2
22 3374-6 .
Nut
2
23 3401-1-6-12 .
Washer
2
24 3558-3.5-10 .
Rivet
4
25 24-5104-98-2 .
Uplock releasing handle, assy
I
