-26


3.

. 1.

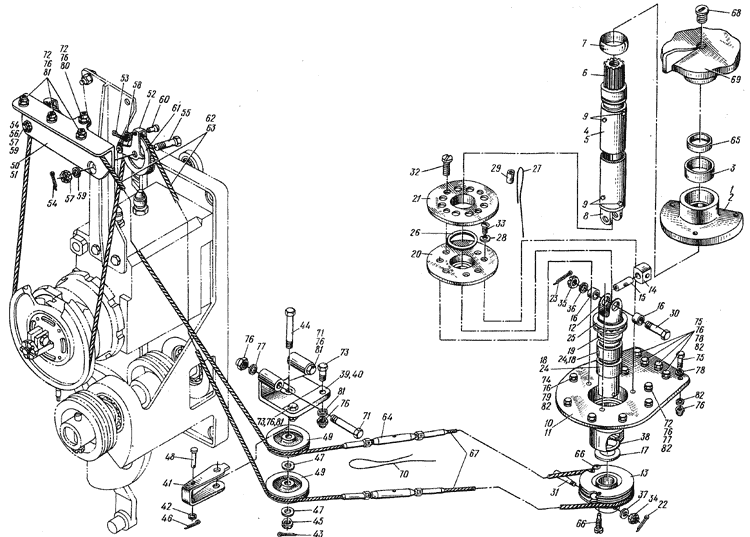

Fig. I. NOSE L.G. WHEELS CONTROL LINKAGE



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
    3.
HOSE LABBISG GEAR WHEELS STEERING

  24-4210-0 (. 5.2, . I, . 34) HOSE LANDING GEAR WHEELS COSTTROL LIHKAGE (See 5.2, Fig. 1, Item No. 34) I
1 - 1 24-4210-20 .
Bracket, assy
I
2 24-4210-20 ..
Bracket
I
3 24-4210-21 ..
Bush
I
4 24-4210-30 .
Shaft, assy
I
5 24-4210-30-3 ..
Tube
I
6 24-4210-31 ..
Slotted end-piece
I
7 24-4210-32 .. ()
Bush
I
8 24-4210-33 ..
Fork
I
9 3610A-8-33
Tubular rivet
4
10 24-4210-40 .
Pressure seal, assy
I
11 24-4210-41 ..
Bracket
I
12 24-4210-43 ..
Axle
I
13 24-4210-47 ..
Pulley
I
1 - 14 24-4210-48 ..
Block
I
15 24-4210-49 ..
Axle
I
16 24-4210-51 ..
Bush
2
17 24-4210-52 ..
Washer
I
18 24-4210-56 ..
Race
2
19 24-4210-58 ..
Washer
I
20 24-4210-61 ..
Cover
I
21 24-4210-62 ..
Cover
I
22 1,5x15-002
397-66
..
Cotter pin
I
23 1,5x20-002
397-66
..
Cotter pin
I
24 2,5x14
6870-54
..
Needle roller
56
25 8104 ..
( 100/5)
Thrust bearing (delivered according to 100/5)
I
26 21S6A-21-2 ..
Packing ring
I
27 0,5-
792-67
..
Locking wire
on

28 65-
6402-61
..
SpringWasher
3
1 - 29 2444A ..
Seal
I
30 3027A-6-34-3 ..
Bolt
I
31 3033-6-33-2,5 ..
Taper Bolt
I
32 3162A-4-8 ..
Screw
4 '
33 3166A-3-8 ..
Screw
3
34 3341A-5 ..
Nut
I
35 3341A-6 ..
Nut
I
36 3402-0,5-6-12 ..
Washer
I
37 I272C50-5-30 ..
Washer
I
38 260952-20-2- ..
Packing ring
I
39 24-4210-80 .
Bracket, assy
I
40 24-4210-81 ..
Bracket
I
41 24-4210-82 ..
Guard
I
42 3402A-1-4-8 ..
Washer
I
43 1,5x20-002
397-66
..
Cotter pin
I
44 3027-7-50-3 ..
Bolt
I
45 3341A-6
Nut
I
46 1,5x8-002
397-66
..
Cotter pin
I
1-47 3402-2-7-14 ..
Waeher
2
48 13405-4-25-23 ..
Pin
I
49 47250-50-7 ..
Roller
- 2
50 24-4210-100 .
Bracket, assy
I
51 24-4210-101 ..
Bracket
I
52 24-4210-102 ..
Guard
2
53 1x6-002
397-66
..
Cotter pin
4
54 1,5x20-002
397-66
..
Cotter pin
2
55 3027-7-36-3 ..
Bolt
I
56 3027-7-38-3 ..
Bolt
I
57 3341-6 ..
Nut
2
58 3402-1-3-7 ..
Washer
4
59 3402-1,5-7-12 ..
Washer
2
60 1340C51-3-15-13 ..
Pin
4
61 47250-50-7 ..
Roller
2
62 24-4210-110 .
Cable, assy
I
63   ..
Cable
I
64 24150-6 ..
Coupling
2
1 - 65 24-4210-35 .
Bush
I
66 24-4210-112 .
Check screw
2
67 24-4210-120 .
Cable
I
68 24-4210-151 . Screw 2
69 24-4210-160 .
Handwheel
I
70 0,5-
792-67
.
Locking wire

AR

  3003-5-42 .
Bolt
2
72 3021A-5-16 .
Bolt
10
73 3021A-5-18 .
Bolt
2
74 3021A-5-20 .
Bolt
I
75 3021A-5-22 .
Bolt
5
76 3373-5 .
Nut
20
77 3401A-0,5-5-10 .
Washer
6
78 3401A-1-5-10 .
Washer
5
79 3401A-0,5-5-10 .
Washer
I
80 3402A-1,5-5-10 .
Washer
I
81 3402A-1,5-5-10 .
Washer
7
82 139AH-5 .
Bolt connection sealing Washer
12
