-26

( )

. 2. ( )

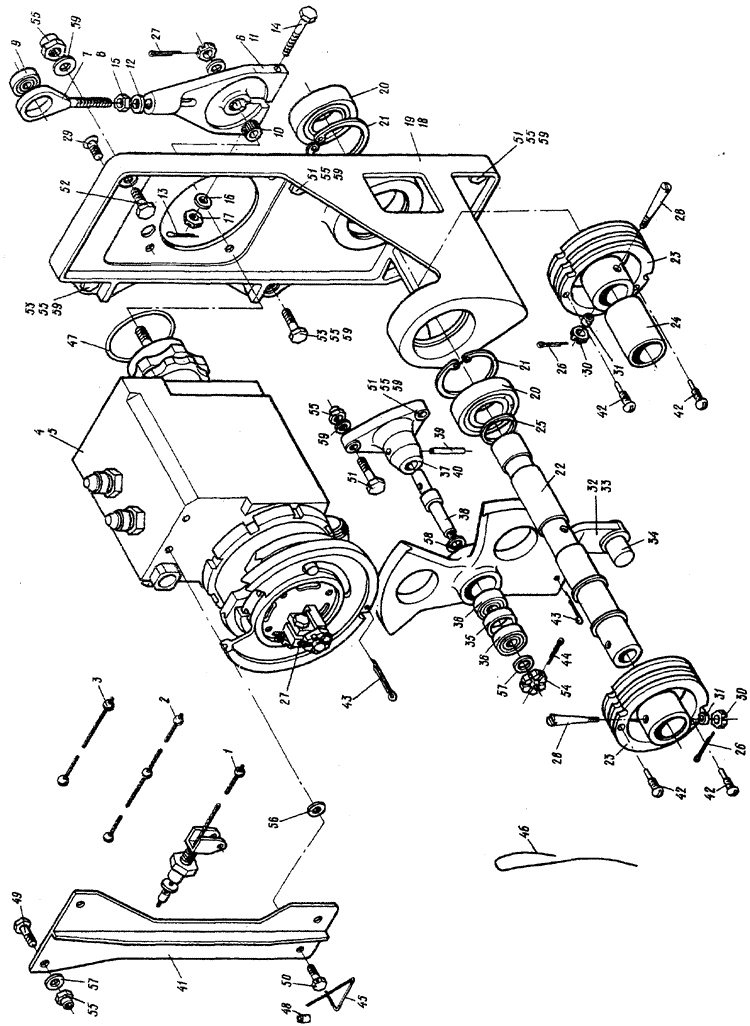

Fig. 2. FOLLOW-UP SYSTEM



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-4206-100 ( )
FOLLOW-TO SYSTEM
I
2 - 1 24-4206-110 .
Cable
I
2 24-4206-180 .
Cable
I
3 24-4206-190 .
Cable
I
4 24-4206-240 . -8
-8 valve
I
5 -8 ..
Combined slide valve
I
6 24-4206-130 ..
Lever
I
7 24-4206-134 ..,
Eye
I
8 24-5304-51 ....
Eye
I
9 981065 ( 100/5)
Ball bearing (delivered according to 100/5)
I
10 24-4206-132 ...
Bush
I
11 24-4206-135 ...
Lever
I
12 24-4206-193 ...
Washer
I
13 1,5x15-002
397-66
...
Cotter Pin
I
2-14 3003A-5-42-3 ....
Taper Bolt
I
15 3320-8 ...
Nut
I
16 3327-5 ..
Nut
I
17 3402-0,8-5-10 ...
Washer
I
18 24-4206-260 ..
Bracket
I
19 24-4206-260-3 ...
Bracket
I
20 B80I04C1 ... ( 100/3)
Ball bearing (delivered according to 100/3)
2
21 564M5-42 ...
Locking ring
2
22 24-4206-133 ..
Pin
I
23 24-4206-175 .. Pulley 2
24 24-4206-240-3 ...
Bush
I
25 24-4206-240-5 ..
Washer
I
26 1,5x15-002
397-66
..
Cotter Pin
2
27 2x25-002
397-66
..
CotterPin
2
  3003-6-33-2,5 ..
Taper Bolt
2
29 3183A-6-18 ..
Screw
4
2 - 30 3341-5 ..
Nut
2
31 127250-5-30 ..
Saddle Washer
2
32 24-4206-270 .
Bellcrank
I
33 24-4206-212 .
Bellcrank
I
34 24-4206-214 ..
в
I
35  24-4206-233 ..
Ring
I
36 800181 .. ( 100/3)
Ball bearing (delivered according to 100/3)
2
37 24-4206-280 .
Bracket
I
38 24-4206-222
Peg
I
39 24-4206-223 ..
Peg
I
40 24-4206-225 ..
Body
I .
41 24-4206-215 .
Holding clamp
I
42 24-4210-112 .
Check Screw
4
43 1,5x12-002
397-66
.
Cottar Pin
3
44 1,5x15-002
397-66
. Cotter
Pin
I
45 0,8-
792-67
.
Locking wire

AR

2 - 46 I-1fr
792-67
.
Locking wire

AR

47 2186A-84-2 .
Packing ring
I
48 2444 .
Seal
3
49 3021A-6-16 .
Bolt
2
50 3021-6-16--182AT .
Bolt
2
51 3021A-6-24 .
Bolt
6
52 3021A-6-28 .
Bolt
I
53 3021A-6-30 .
Bolt
2
54 3341A-6 .
Nut
I
55 3373-6 ,
Nut
11
56 3401A-1-6-12 .
Washer
4
5? 3402A-1-6-12 .
Washer
I
58 3402A-1,5-8-16 .
Washer
I
59 139AH-6 .
Bolt connection sealing
Washer
9
