-26


6.
1.

. 1. ( 2 . 1)

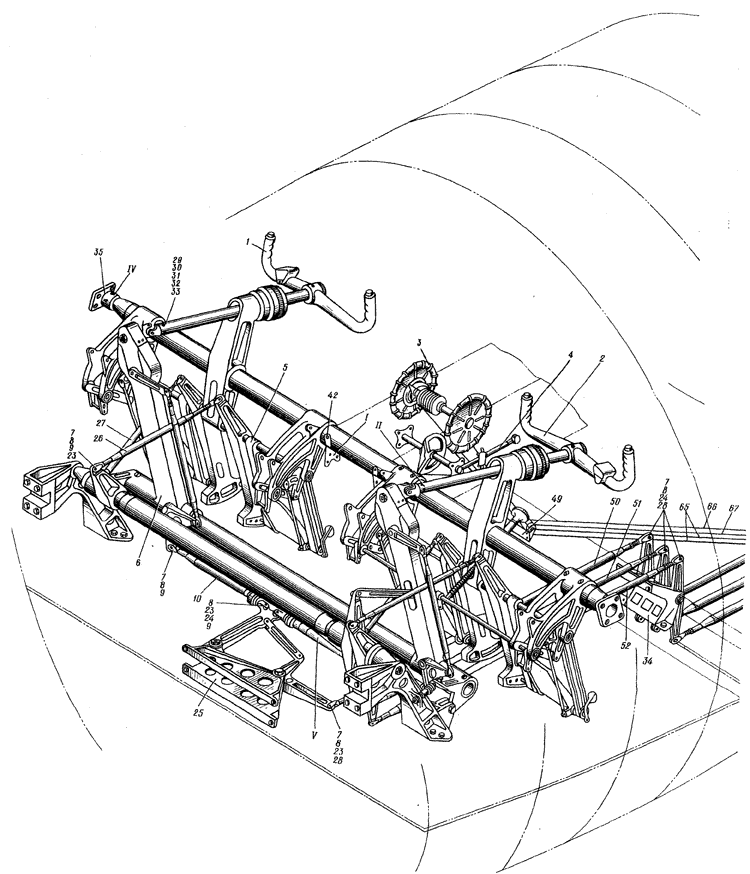

Fig. I. FLIGHT CONTROL SYSTEM COMPONENTS IN FUSELAGE NOSE SECTION (Sheet 1 of 2)



. 1. ( 2 . 2)

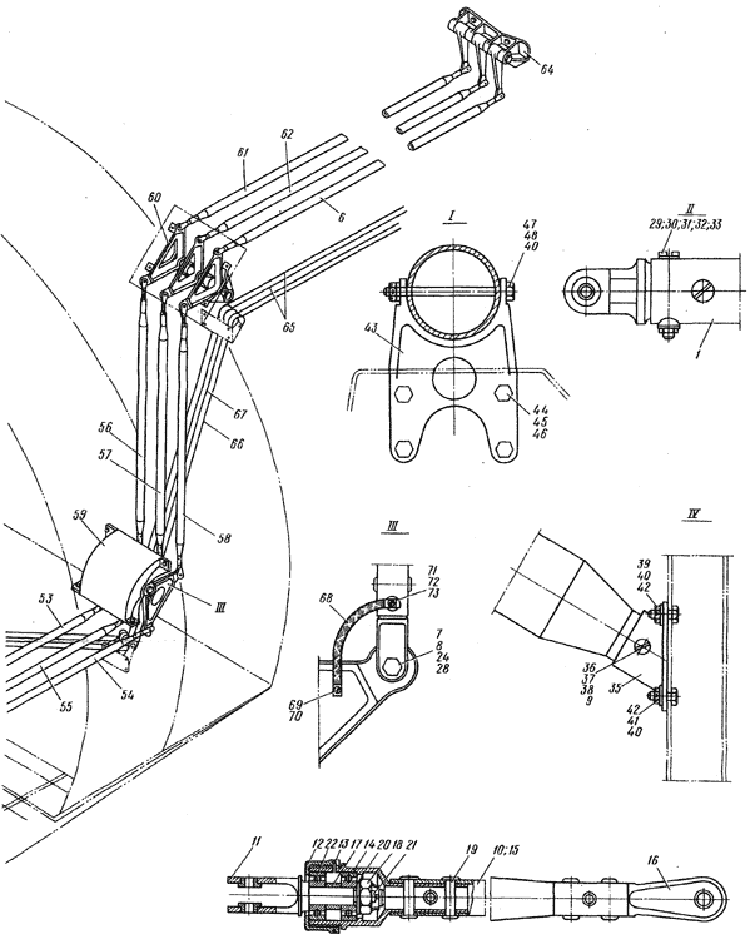

Fig. I. FLIGHT CONTROL SYSTEM COMPONENTS IN FUSELAGE NOSE SECTION (Sheet 2 of 2)



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
    1.
FLIGHT
Control SYSTEM COMPONENTS IN FUSELAGE NOSE SECTION

  24-5100-0
FLIGHT
Control SYSTEM COMPONENTS IN FUSELAGE NOSE SECTION

1 - 1 24-5101-200-1 . (. 6.1, . 4)
Control wheel, right (See 6.1, Fig. 4)
I
2 24-5101-200-2 . (. 6.1, . 4)
Control wheel, left (See 6.1, Fig. 4)
I
3 26-5103-0 . (. 6.1, . 6)
Elevator trim tab Control wheel on Control pedestal (See 6.1, Fig. 6)
I
4 24-5104-0 . (. 6.1, . 7)
Control surfaces locking lever on Control pedestal (See 6.1, Fig. 7)
I
5 24-5102-0 . (. 6.1, . 5)
Control pedals (See 6.1, Fig. 5)
I
6 26-5101-0 , (. 6.1, . 3)
Control wheels assembly (See 6.1, Fig. 3)
I
1 - 7 817AH-26 .
Bolt
36
8 818 .
Nut
36
9 1,5x25-002
397-66
.
Cotter pin
36
10 24-5100-10 .
Control rod
2
11 24-5100-1 .. Pork 2
12 24-5100-8 ..
Nut
2
13 24-5100-3 ..
Ring
2
14 24-5100-4 ..
Sleeve
2
15 8368C51-2-329 ..
Tube
2
16 8380C51-2 ..
Sleeve
2
17 2406A57-9-14-14 ..
Bush
2
18 3327-8 ..
Nut
2
19 745-28 ..
Rivet
12
20 3402A-1,5-8-16 ..
Washer
2
21 2x2,5-002
397-66
..
Cotter pin
2
22 29 .. ( 100/5)
Ball bearing (delivered according to 100/5)
4
1 - 23 817-28 .
Bolt
3
24 3402-0,5-7-12 .
Washer
2
25 24-5105-0 . (. 6.1, . 8)
Control linkage assembly on Frame No. 1 (See 6.1, Fig. 8)
I
26 .
Control rod
2
27 .
Control rod
2
28 1,5x20-002
397-66
.
Cotter pin
24
29 3033-6-44-2,5 .
Taper Bolt
4
3327-5 .
Nut
4
Dz 1272050-5-40 .
Saddle Washer
4
32 3402-0,5-5-10 .
Washer
4
33 1,5x15-002
397-66
.
Cotter pin
4
34 24-5106-0 . 4 (. 6.1, . 9)
Control linkage assembly On Frame No. 4 (See 6.1, Fig. 9)
I
35 24-5100-5 .
Flange
2
1 - 36 3033-8-65-3 .
Taper Bolt
2
37 3327-6 .
Nut
2
38 124950-6 .
Washer
2
39 3021-6-20 .'
Bolt
4
40 3402-1-6-12 .
Washer
2
41 3373-6 .
Nut
4
42 3021-6-18 .
Bolt
4
43 24-5100-6 .
Bracket
2
44 3021-5-18 .
Bolt
2
45 3402A-0,8-5-10 .
Washer
2
46 3373-5 .
Nut
2
47 3017-6-82 .
Bolt
2
48 3374-6 .
Nut
2
49 24-5120-0 . (. 6.1, . 2)
Bracket on pilot's floor (See 6.1, Fig. 2)
I
50 .
Control rod
I
1 - 51 .
Control rod
I
52 .
Control rod
I
53 .
Control rod
I
54 .
Control rod
I
55 .
Control rod
I
56 .
Control rod
I
57 .
Control rod
I
58 .
Control rod
I
59 24-5107-0 . 7 (. .6.1, . 10)
Lower linkage assembly on Frame No. 7 (See 6.1, Fig. 10)
I
60 24-5108-0 . 7 (. 6.1, . II)
Upper linkage assembly on Frame . 7 (See 6.1, Fig. 11)
I
1 - 61 .
Control
I
62 .

Control rod
I
63 .
Control rod
I
64 24-5109-0 . 10 (. 6.1, . II)
Control linkage assembly on ?rame No. 10 (See 6.1, Fig. 11)
I
65 24-5104-60 .
Cable
2
66 24-5103-31-3 .
Cable
I
67 24-5103-31-4 .
Cable
I
68 99-100 .
Bonding atrip
27
69 166-4-6 .
Screw
27
70 6057056-4,2 .
Bonding Washer
27
71 3051-4-36 .
Bolt
27
72 3373-4 .
Nut
27
73 3401-0,8-4-8 .
Washer
27
