. 4.

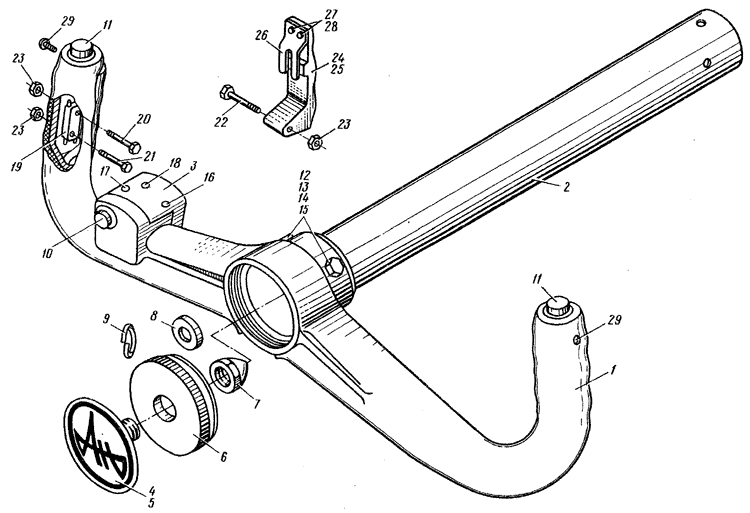

Fig. 4. CONTROL WHEEL



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-5101-200-1 (. 6.1, . I, . I)
Control WHEEL (See 6.1, Fig. 1, Item No. 1)
I
  24-5101-200-2 (. 6.1, . I, . 2)
Control WHEEL (See 6.1, Fig. 1, Item No. 2)
I
4 - 1 24-5101-202-2 . ,
Control wheel with lining, left
I
  24-5101-202-1 . ,
Control wheel with lining, right
I
2 24-5101-123 .
Tube
2
3 24-5101-153-2 .
Cover, left
I
  24-5101-153-1 .
Cover, right
I
4 24-5101-180 .
Cover
2
5 24-5101-186 ..
Emblem
2
6 24-5101-181
Nut
2
7 1034C50-5 ..
Nut
2
8 3402A-1-5-20 ..
Washer
2
9 565
6402-61
..
Spring waaher
2
10 512 .
Autopilot Control button
2
11 -4 .
Control button
4
4 - 12 3027-6-16 .
Bolt
8
13 31-6 .
Nut
8
14 3401-1-6-12 .
Washer
8
15 24-5101-208 .
Washer
8
16 3166A-3-22 .
Screw
2
17 97350-3-8 .
Screw
2
18 3166A-3-28 .
Screw
2
19 703.0.360.011 .
Microswitch
2
20 24-5101-158-6 .
Screw
2
21 24-5101-158-4 .
Screw
2
22 24-5101-158-5 .
Screw
2
23 24-5101-203 .
Nut
6
24 24-5101-155 .
Autopilot override knob, assy
2
25 24-5101-163 ..
Knob
2
26 24-5101-162 ..
Spring
2
27 3177A-3-8 ..
Bolt
4
28 3320-3 ..
Nut
4
29 97350-3-6 ..
Screw
4
