-26

1

. 8. 1

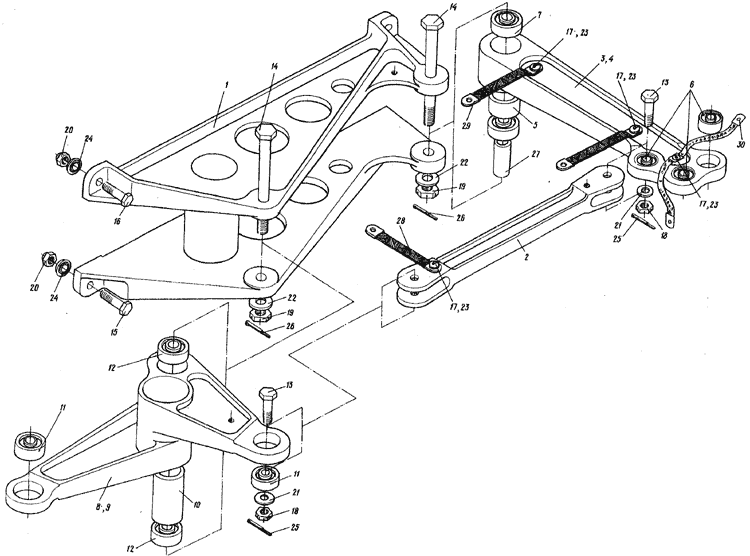

Fig. 8. CONTROL LINKAGE ASSEMBLY ON FRAME No. 1



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-5105-0 I (. 6.1, . I, . 25)

Control LINKAGE ASSEMBLY ON FRAME No. 1 (See 6.1, Fig. 1, Item N. 25)
I
8 - 1 24-5105-1 .
Bracket
I
2 24-5105-10 .
Control rod
I
3 24-5105-20 .
Belicrank, assy
I
4 24-5105-20-3 ..
Belicrank
I
5 24-5105-21 ..

Bush
I
6 981067 .. ( 100/5)
Ball bearing (delivered according to 100/5)
3
7 981067 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
8 24-5105-30 .
Belicrank, assy
I
9 24-5105-30-3 ..
Belicrank
I
10 24-5105-31 ..
Bush
I
8 - 11 981067 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
12 980800 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
1 3027A-7-28-3 .
Bolt
2
14 3027-10-108-4 .
Bolt
2
15 3021-6-26 .
Bolt
2
16 3021-6-24 .
Bolt
2
17 3166-4-6 .
Screw
8
18 3341-6 .
Nut
2
19 3341-10 .
Nut
2
20 3373-6 .
Nut
4
21 3401-1-6-12 .
Washer
2
22 3401-1,5-10-20 .
Washer
2
23 6057056-4,2 .
Bonding washer
8
8 - 24 139AH-6 .
Sealing washer
4
25 1,5x20-002
397-66
.
Cotter pin
2
26 2,5x30-002
397-66
.
Cotter pin
2
27 1367C50-11-14-34 .
Bush
T
28 99A-1-80 .
Bonding strip
2
29 99A-1-90 .
Bonding strip
2
30 100AH-1-180 .
Bonding strip
I
