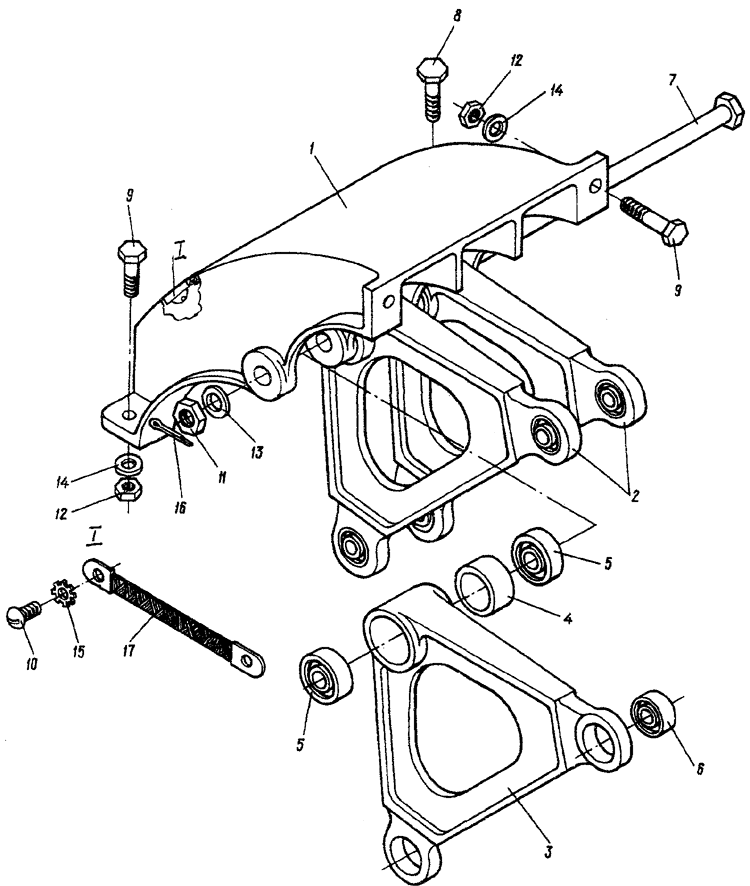

Fig. 10. LOWER LINKAGE ASSEMBLY ON FRAME No. 7



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-5107-0 7, (. 6.1, . I, . 59)
LOWER LINKAGE ASSEMBLY ON PEAMS No. 7 (See 6.1, Fig. 1, Item No. 59)

10 - 1 24-5107-3 .
Bracket
I
2 24-5107-10 .
Bellcrank, assy
3
3 24-5107-10-3 ..
Bellcrank
3
4 24-5106-21 ..
Bush
3
5 980800 .. ( 100/5)
Ball bearing (delivered according to 100/5)
6
6 981067 .. ( 100/5)
Ball bearing (delivered according to 100/5)
6
7 3027A-10-170-4 .
Bolt
I
8 3021A-6-26 .
Bolt
I
9 3021A-6-22 .
Bolt
3
10 3I66A-4-6 .
Screw
6
11 3341A-10 .
Nut
I
10 - 12 3373-6 .
Nut
4
13 3402-1,5-10-20 .
Washer
I
14 3402-1-6-12 .
Washer
4
15 6057056-4,2 .
Bonding washer
6
16 2,5x30-002
397-66
.
Cotter pin
I
17 99-1-120 .
Bonding strip
3
