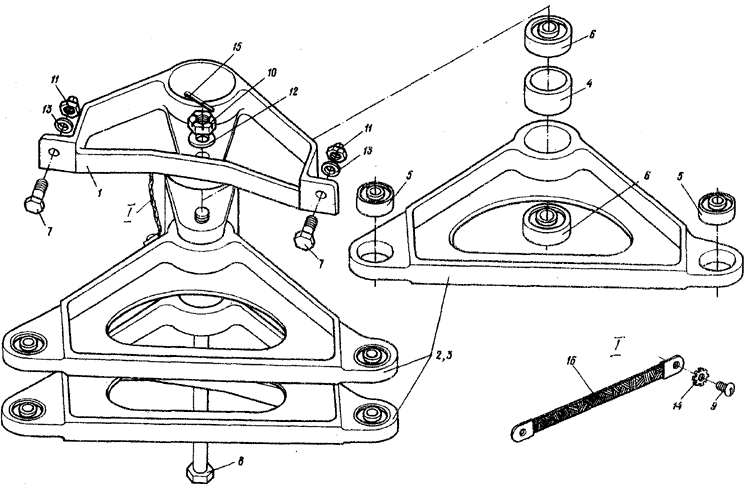

Fig. 11. UPPER LINKAGE ASSEMBLY ON FRAME No. 7



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-5108-0 7, (. 6.1, . , . 60)
UPPER LINKAGE ASSEMBLY ON FRAME No. 7 (See 6.1, Fig. 1, Item Ho. 60)

11 - 1 24-5108-10 .
Bracket
I
2 24-5108-20 .
Bellcrank, assy
3
3 24-5108-20-3 ..
Bellcrank
3
4 24-5106-21 ..
Bush
3
5 981067 .. ( 100/5)
Ball bearing (delivered according to 100/5)
6
6 980800 .. ( 100/5)
Ball bearing (delivered according to 100/5)
6
7 302-6-24 .
Bolt
4
8 3027-1-172-4 .
Bolt
I
9 3166-4-6 .
Screw
6
10 3341-10 .
Bat
I
11 3373-6 .
Nut
4
11 - 12 3402A-1,5-10-20 .
Washer
I
13 3402-1-6-12 .
Washer
4
14 605756-4-2 .
Bonding washer
6
15 2,5x30-002
397-66
.
Cotter in
I
16 99-2-120 .
Bonding strip
3
