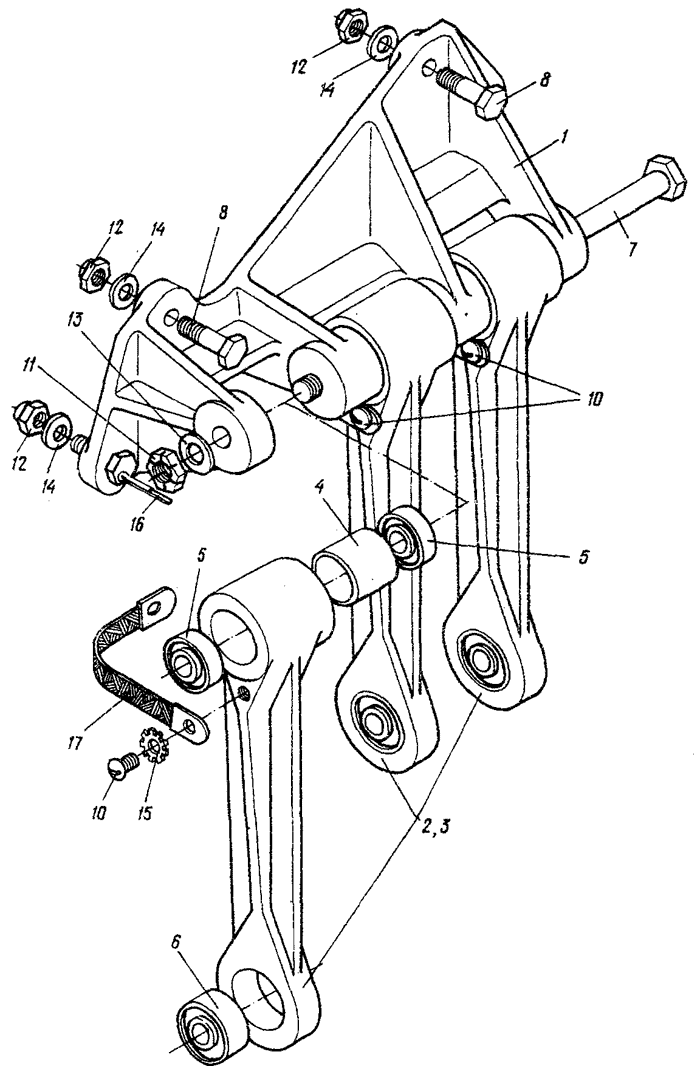

Fig. 12. CONTROL LINKAGE ASSEMBLY ON FRAME No. 10



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-5109-0 10 (.6.1, .1, . 64)
CONTROL LINKAGE ASSEMBLY ON FRAME No. 10 (See 6,1, Fig. 1, Item No. 64)

12 - 1 24-5109-3 .
Bracket
I
2 24-5109-10 .
Bellcrank, assy
3
3 24-5I09-10-3 ..
Bellorank
I
4 24-5I09-11-1 ..
Bush
3
5 H7980077 .. ( 100/5)
Ball bearing (delivered according to 100/5)
3
6 981067 .. ( 100/5)
Ball bearing (delivered according to 100/5))
3
7 3027A-7-164-3,5 .
Bolt
I
8 4916A-5-18 .
Bolt
2
9 4916-5-20- .
Bolt
2
10 3166A-4-7 .
Screw
6
11 3373-6 .
Nut
I
12 - 12 3373-5 .
Nut
4
13 3402A-1-6-12 .
Washer
I
14 3402A-0,8-5-10 .
Washer
4
15 6057056-4,2 .
Bonding washer
6
16 1,5x20-002
397-66
.
Cotter pin
I
17 99-1-100 .
Bonding strip
3
