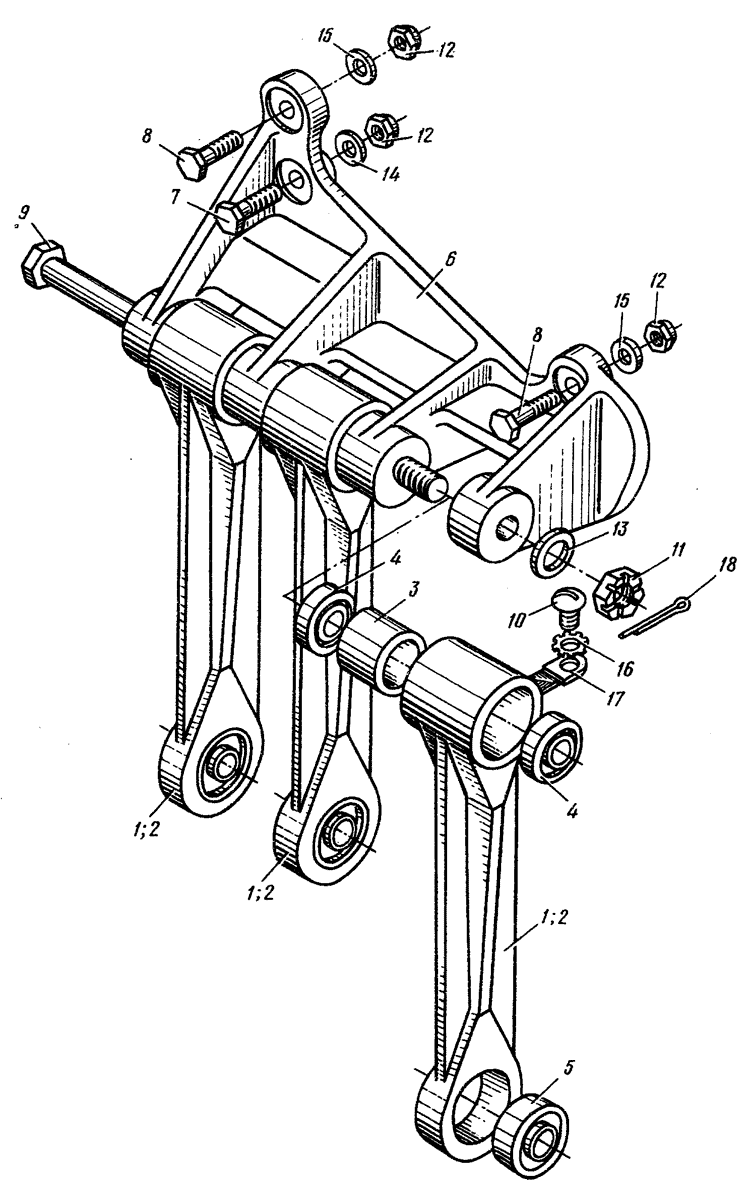

Fig. 2. CONTROL LINKAGE ASSEMBLY ON FRAME No. 13



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-5201-60 13 (. 6.2, . , . 2)
CONTROL LINKAGE ASSEMBLY ON FRAM No. 13 (See 6.2, Fig. 1, Item N. 2)
I
2 - 1 24-5109-10 .
Bellcrank, assy
3
2 24-5109-10-3 ..
Bellcrank
I
3 24-5109-11-1 ..
Bush
I
4 980077 . . ( 100/5)
Ball bearing (delivered according to 100/5)
2
5 981067 . . ( 100/5)
Ball bearing (delivered according to 100/5)
I
6 24-5201-52 .
Bracket
I
7 4916-5-18 .
Bolt
I
8 4916-5-20 .
Bolt
3
9 3027-7-164-3,5 .
Bolt
I
10 3166-4-7 . Screw 6
11 3341-6 .
Nut
I
12 3373-5 .
Nut
4
2 - 13 3402A-1-6-12 .
Washer
I
14 3402-115-5-10 .
Washer
I
15 3402A-1-5-10 .
Washer
3
16 605756-4.2 .
Bonding washer
6
17 99AH-1-100 .
Bonding strip
3
18 1,5x20-002
397-66
.
Cotter pin
I
