-26

15

. 3. 15

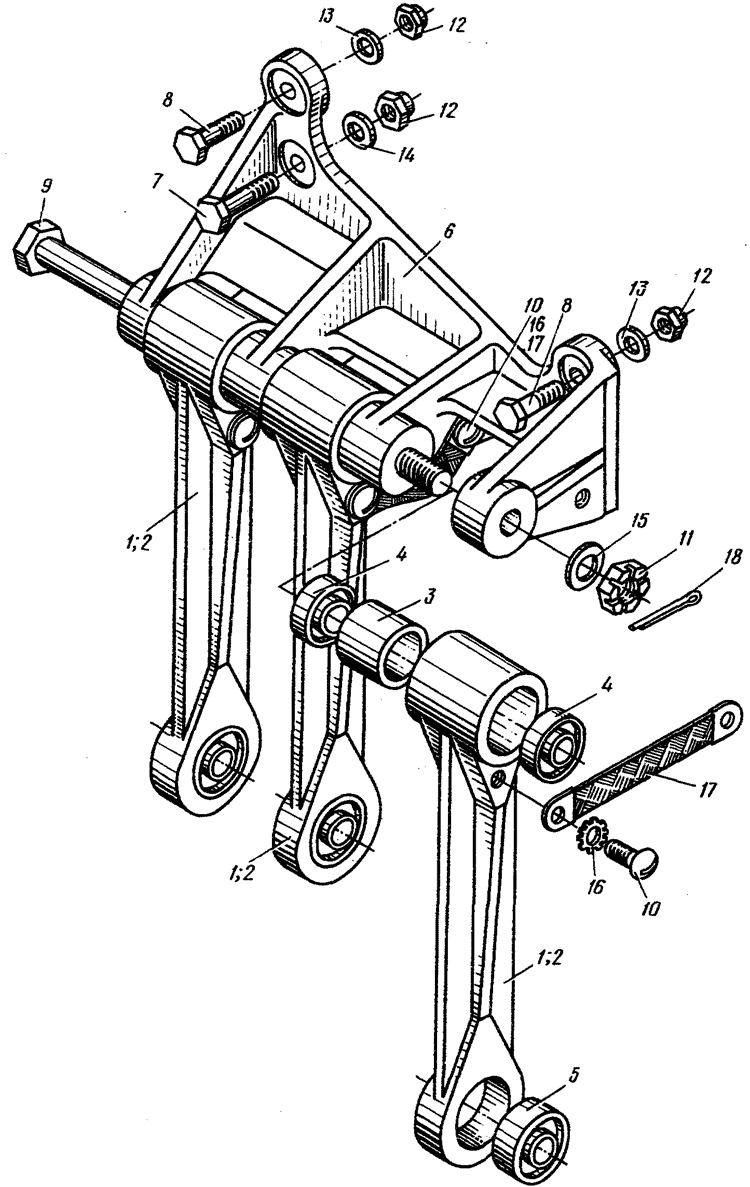

Fig. 3. CONTROL LINKAGE ASSEMBLY ON FRAME No. 15



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-5201-0 15 (. 6.2, .1, . )
CONTROL LINKAGE ASSEMBLY ON FRAME No. 15 (See 6.2, Fig. 1, Item Ho. 1)
I
3 - 1 24-5109-10 .
Ballcrank, assy
3
2 24-5103-10-3 ..
Bellcrank
T
3 24-5109-11-1 ..
Bush
I
4 980077 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
5 81067 .. ( 100/5)
Ball bearing (delivered according to 100/5)
I
6 24-5201-4 .
Bracket
I
7 4916-5-18 .
Bolt
I
8 4916-5-20 .
Bolt
3
9 3027-7-164-3,5 .
Bolt
I
10 3166-4-7 .
Screw
6
11 3341- .
Nut
I
12 3373-5 .
Nut
4
3 - 13 3402A-1-5-10 .
Washer
3
14 3402-1,5-5-10 .
Washer
I
15 3402-1-6-12 .
Washer
I
16 6057056-4,2 .
Bonding washer
6
17 99H-1-100 .
Bonding strip
3
18 1,5x20-002
397-66
. ffi&sasr
Cotter pin
I
