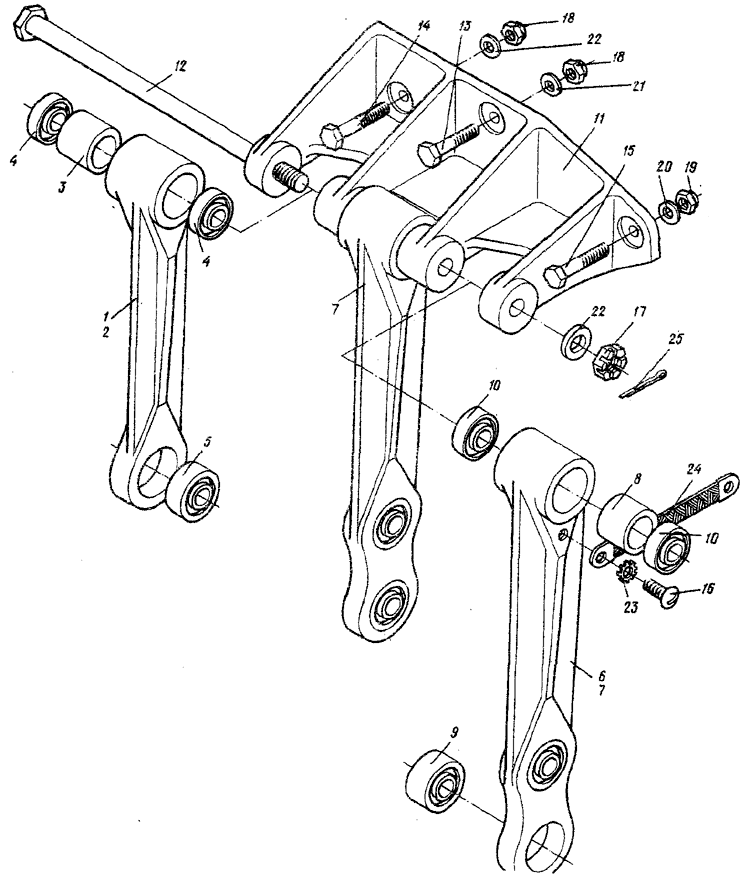

Fig, 4. CONTROL LINKAGE ASSEMBLY ON WING CENTER SECTION FRONT SPAR



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-5202-20 (. 6.2, . I, . 3)
CONTROL LINKAGE ASSEMBLY ON WING CENTER SECTION FRONT SPAR (See 6.2, Fig. 1, Item Ho. 3)
I
4 - 1 24-5109-10 .
Bellcrank, assy
I
2 24-5109-10-3 ..
Bellcrank
I
3 24-5I09-11-1 ..
Bush
I
4 HT980077 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
5 9867 .. ( 100/5)
Ball bearing (delivered according to 100/5)
I
6 24-5202-10 .
Bellcrank, assy
2
7 24-5202-10-3 ..
Bellcrank
I
8 24-5109-11-1 ..
Bush
I
9 981067 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
10
i
980077 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
I 24-5202-9
Bracket
I
12 3027A-7-164-4
Bolt
I
13 302IA-6-24
Bolt
I
14 302IA-6-28
Bolt
I
15 302IA-8-28 Bolt I
16 3I66A-4-7
Screw
6
17 334IA-6
Nut
I
18 3373-6
Nut
2
19 3373-8
Nut
I
20 3402A-1,5-8-14
Washer
I
21 3402A-2-6-12
Washer
I
22 3402A-1-6-12
Washer
2
23 6057056-4,2
Bonding washer
6
24 99AH-1-100
Bonding strip
3
25 1,5x20-002
397-66

Cotter pin
I
