-26

- ( )

. 2. - ( )

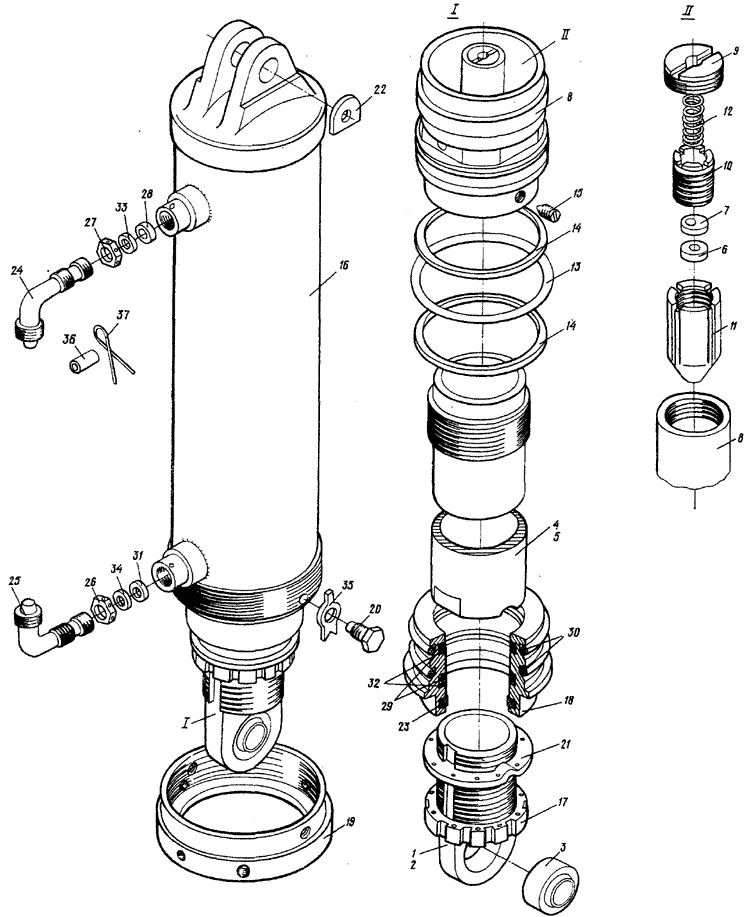

Fig. 2. MAIN L.G. UNIT ACTUATING CYLINDER



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-4103-0 - ( ) (. 5.1, . I, . 3)
MAIN LANDING GEAR UNIT ACTUATING CYLINDER (See 5.11 Pig. 1, Item N. 3)

2 - 1 26-4103-10 .
Eye, assy
I
2 26-4103-10-3 ..
Eye
I
3 25 .. ( 100/5)
Ball-and-sooket bearing (delivered according to 100/5)
I
4 26-4103-50 .
Rod, assy
I
5 26-4103-30 ..
Welded rod
I
6 24-4103-6 ..
Washer
I
7 24-4103-7 ..
Washer
I
8 26-4103-24 ..
Piston
I
9 26-4103-25 ..
Nat
I
10 26-4103-26 ..
Nut
I
11 26-4103-27 ..
Valve
I
12 I916A-1,2-8-35-11 ..
Spring
I
2 - 13 2186A-58 ..
Packing ring
I
14 2187A-58 ..
Protective washer
2
15 3221A-5-8 ..
Retainer screw
2
16 26-4103-60 .
Welded cylinder
I
17 26-4103-1 . Hut I
18 26-4103-2 .
Guide bush
I
19 26-4103-3 .
Hut
I
20 26-4103-4 .
Bolt
2
21 26-4103-5 .
Washer
I
22 26-4103-8 .
Washer
I
23 T79-70-8
288-61
. -
Packing gland
I
24 2809A-8-43 .
Threaded elbow
I
25 4685A-6-40 .
Threaded elbow
I
26 2196A-12x1,5 . Hut I
27 2196A-14 .
Hut
I
28 2186A-1I-2 .

Packing ring
I
29 2186A-47-1 .
Packing ring
2
2 - 30 2186A-58-2 .
Packing ring
2
31 2186A-176-2 .
Packing ring
I
32 2187A-47 .
Protective washer
2
33 2198A-5 .
Protective washer
I
34 2198A-20 .
Protective washer
I
35 3463A-6 .
Washer
2
36 2444A .
Seal
4
37 -0,8-
792-67
.
Wire

AR
