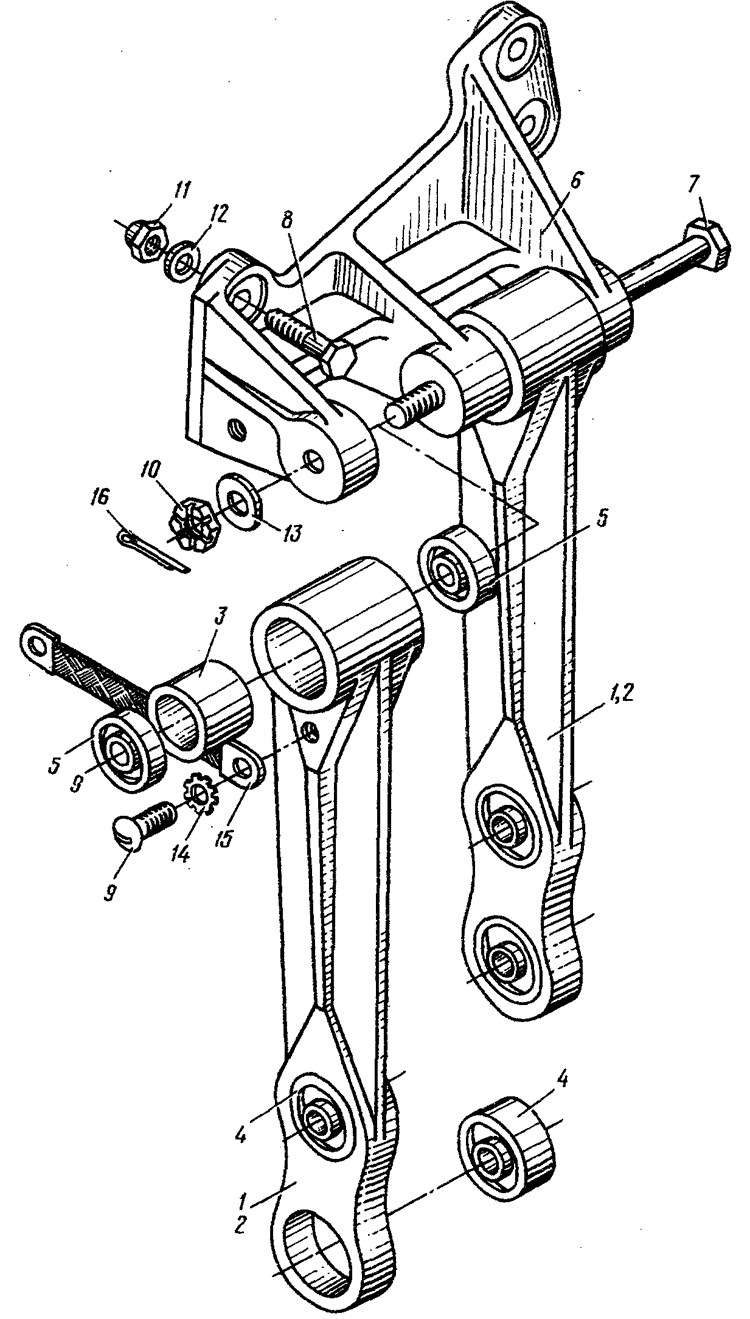

Fig. 5. CONTROL LINKAGE ASSEMBLY ON FRAME No. 21



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-5208-20 21 (. 6.2, . I, . 7)
CONTROL LINKAGE ASSEMBLY ON FRAME No. 21 (See 6.2, Fig. 1, Item No. 7)
I
5 - 1 24-5202-10 .
Bellcrank, assy
2
2 24-5202-10-3 ..
Bellcrank
I
3 24-5109-11-1 ..
Bush
I
4 981067 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
5 980077 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
6 24-5203-5 .
Bracket
I
7 3027A-7-112-3,5 .
Bolt
I
8 4916A-5-18 .
Bolt
4
9 3166A-4-7 .
Screw
4
10 3341A-6 .
Nut
I
11 3373-5 .
Nut
4
12 3402-0,8-5-10 .
Washer
4
5 - 13 3402A-1-6-12 .
Washer
I
14 6057056-4,2 .
Bonding washer
4
15 99-1-00 .
Bonding strip
2
16 1,5x20-002
397-66
.
Cotter pin
I
