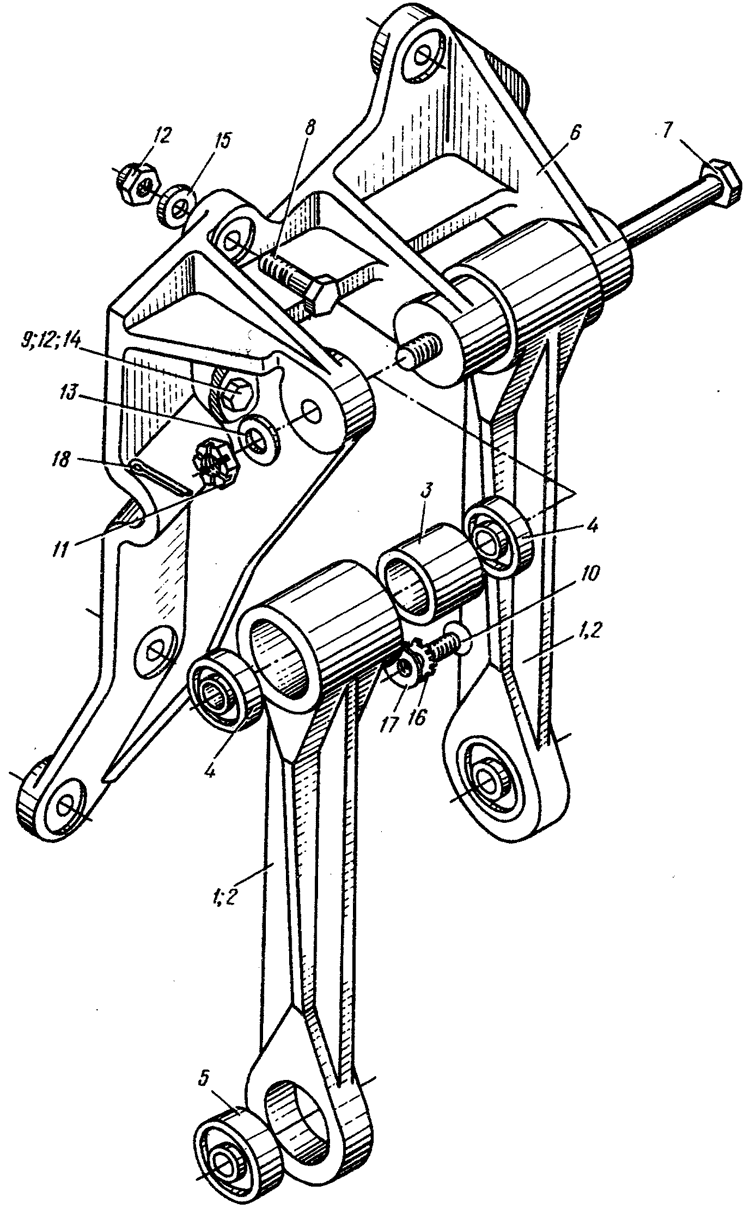

Fig. I. CONTROL LINKAGE ASSEMBLY ON FRAME No. 29



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  34-5207-0 29 (. 6.2, . I, . 4)
CONTROL LINKAGE ASSEMBLY ON FRAME No. 29 (See 6.2, Fig. 1, Item No. 4)
I
7 - 1 24-5109-10 .
Bellcrank , assy
2
2 24-5109-10-3 ..
Bellcrank
I
3 24-5109-11-1 ..
Bush
I
4 HT980077 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
5 981067 .. ( 100/5)
Ball bearing (delivered according to 100/5)
I
6 26-5207-5 .
Bracket
I
7 3027A-7-112-3,5 .
Bolt
I
8 4916A-5-22 .
Bolt
3
9 4916A-5-24 .
Bolt
I
10 3166A-4-7 .
Screw
4
11 3341A-6 .
Nut
I
7 - 12 3373A-5 .
Nut
4
3402A-1-6-12 .
Washer
I
14 3402A-1,5-5-10 .
Washer
I
15 3402-0,5-5-10 .
Washer
3
16 6057056-4,2 .
Bonding washer
4
17 99-1-100 .
Bonding strip
2
18 1,5x20-002
397-66
.
Cotter pin
I
