-26

25 27

. 8. 25 27

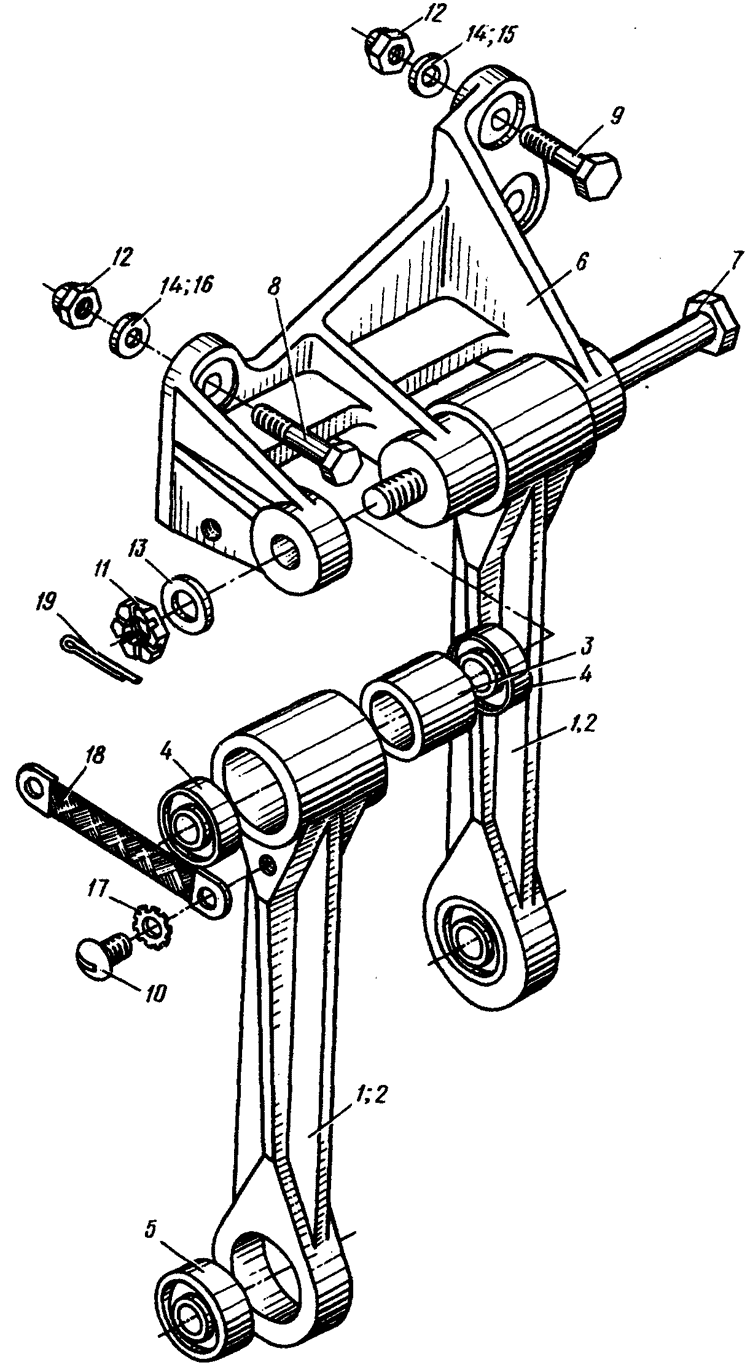

Fig. 8. CONTROL LINKAGE ASSEMBLY ON FRAMES Nos 25 AND 27



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  24-5203-0 25 27 (. 6.2, . I, . 5)
CONTROL LINKAGE ASSEMBLY ON FRAMES Nos 25 AND 27 (See 6.2, Fig. 1, Iten No. 5)
2
8 - 1 24-5109-10 .
Bellcrank, assy
2
2 24-5109-10-3 ..
Bellcrank
I
3 24-5I09-11-1
..
Buah
I
4 HT980077 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
5 81067 .. ( 100/5)
Ball bearing (delivered according to 100/5)
I
6 24-5203-5 .
Bracket
I
7 3027A-7-112-3,5 .
Bolt
I
8 4916A-5-20 .
Bolt
2
9
4916A-5-18 .
Bolt
2
10 3166--7 .
Screw
4
11 334IA-6 .
Nut
I
8 - 12 3373-5 .
Nut
4
13 3402--6-2 .
Washer
I
14 3402-0,8-5-10 .
Washer
4
15 3402-,5-5-10 .
Washer
2
16 3402A-1-5-10 .
Washer
2
17 6057056-4,2 .
Bonding washer
4
18 99-1-100 .
Bonding strip
2
19 1,5x20-002
397-66
.
Cotter pin
I
