-26


3.

. 1. ( 4 . 1)

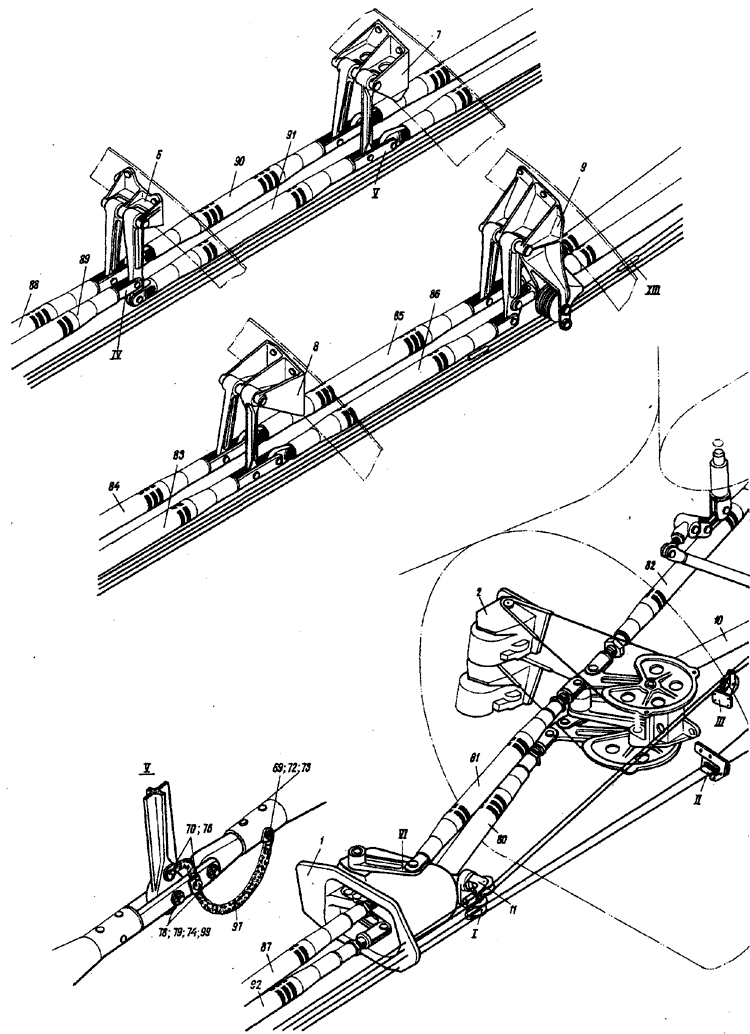

Fig. I. FLIGHT CONTROL SYSTEM COMPONENTS IN FUSELAGE TAIL SECTION (Sheet 1 of 4)



. 1. ( 4 . 2)

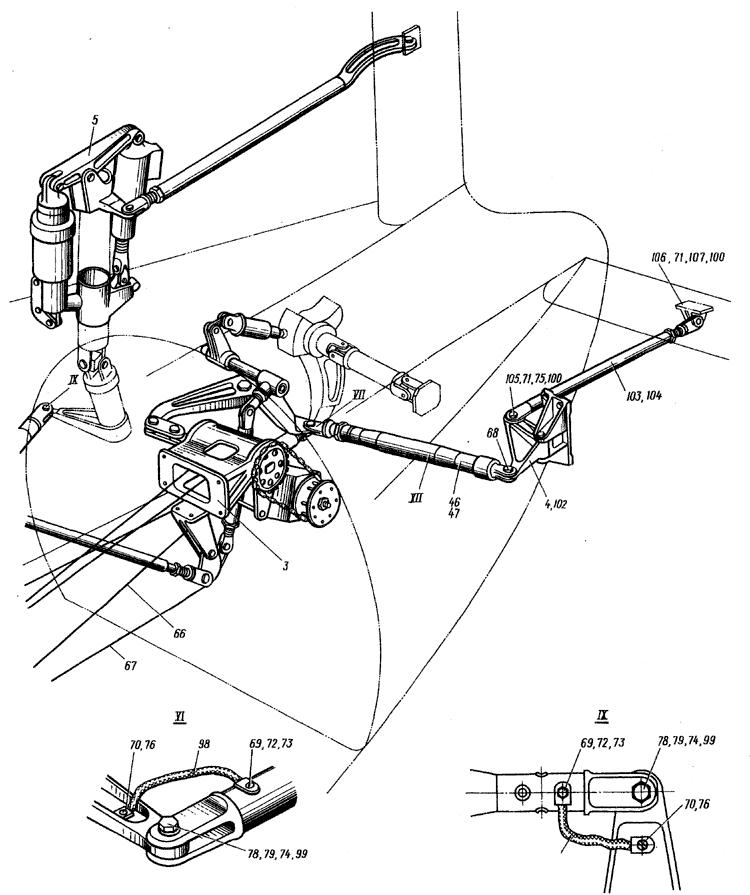

Fig. I. FLIGHT CONTROL SYSTEM COMPONENTS IN FUSELAGE TAIL SECTION (Sheet 2 of 4)



. 1. ( 4 . 3)

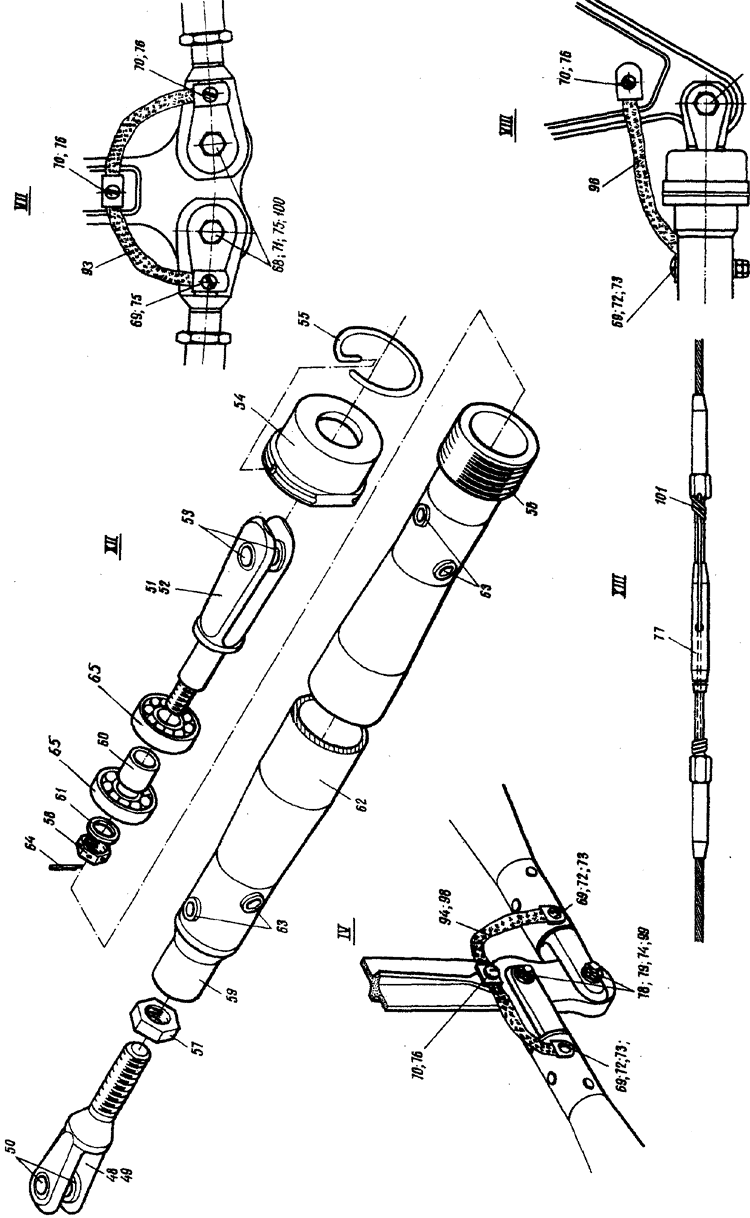

Fig. I. FLIGHT CONTROL SYSTEM COMPONENTS IN FUSELAGE TAIL SECTION (Sheet 3 of 4)



. 1. ( 4 . 4)

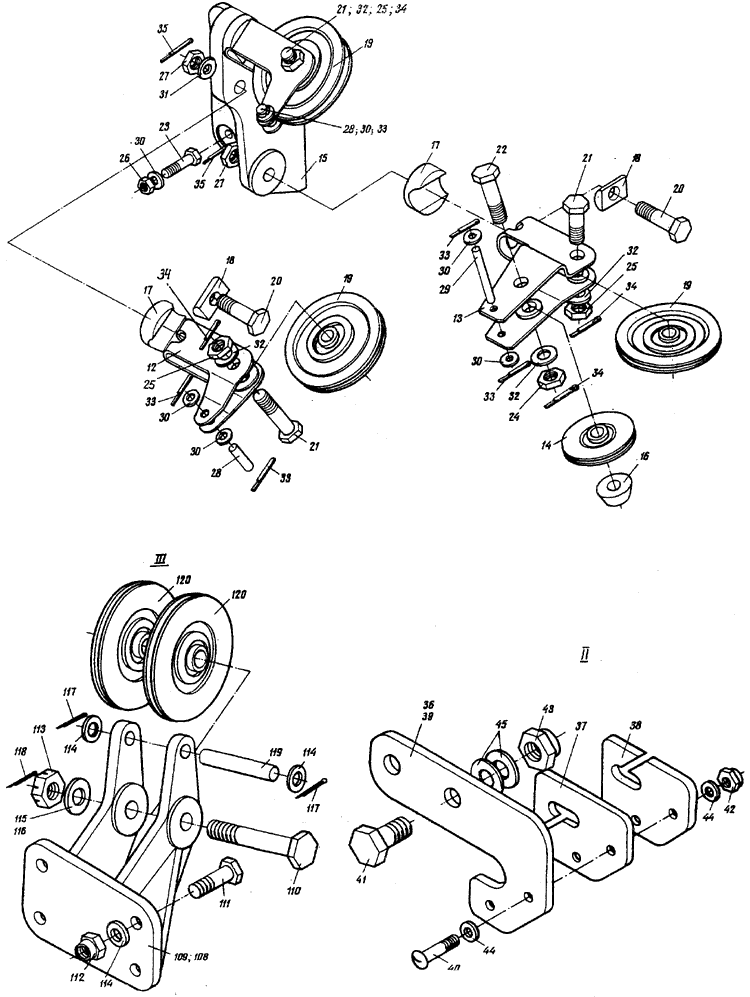

Fig. I. FLIGHT CONTROL SYSTEM COMPONENTS IN FUSELAGE TAIL SECTION (Sheet 4 of 4)



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-5300-0 3.
PLIGHT CONTROL SYSTEM COMPONENTS IN FUSELAGE TAIL SECTION



PLIGHT CONTROL SYSTEM COMPONENTS IN FUSELAGE TAIL SECTION

1 - 1 26-5301-0 . 40 (. 6.3, . 4)
Pressure seal on frame . 40 (See 6.3, Fig.
I
2 26-5302-0 . 43 (. 6.3, . 5)
Autopilot servo units on frame No. 43 (See 6.3, Fig.5)
I
3 26-5303-0 . (. 6.3, . 6)
Elevator trim tab control mechanism and control surfaces locking system mechanism
(See 6.3, Fig. 6)
I
4 26-5304-10 . (. 6,3, . 2)
Bracket with be 11 crank in elevator right-hand section (See 6.3, Fig. 2)
I
1 - 5 26-5305-500 . - (. 6.3, . 7)
Rudder combined trim/balance tab control system (See 6.3, Fig. 7)
I
6 26-5310-0 . 31 (. 6.3, . 8)
Linkage assembly on frame No. 31 (See 6.3, Fig. 8)
I
7 26-5311-0 . 33 (. 6.3, . 9)
Linkage assembly on frame No. 33 (See 6.3, Fig. 9)
I
8 26-5312-0 . 35 (. 6.3, . 10)
Linkage assembly on frame No. 35 (See 6.3, Fig. 10)
I
9 26-5313-0 . 38 (. 6.3, . 11)
Linkage assembly on frame No. 38 (See 6.3, Fig. 11)
I
10 26-5300-120 .
Control rod
I
11 26-5300-70 . 40
Support bracket with pulleys on frame No. 40
I
1 - 12 24-5300-42 ..
Cleat, assy
2
13 26-5300-43 ..
Cleat,
I
14 26-5300-46 ..
Pulley, assy
I
15 26-5300-71 ..
Bracket
I
16 26-5300-45 ..
Bush
I
17 24-5300-43 ..
Block
3
18 24-5300-44 ..
Block
3
19 47250-50-7 ..
Pulley
3
20 496-8-28-4 ..
Bolt
3
21 817-26 ..
Bolt
3
22 027-7-34-3 ..
Bolt
I
23 3021-5-22 ..
Bolt
4
24 3341-6 ..
Nut
I
25 818 ..
Nut
3
26 3373-5 ..
Nut
4
27 3341-8 ..
Nut
3
1 - 28 258-22 ..
Guard
2
29 258H-34 ..
Guard
I
X 3401-0,8-5-10 .. Washer 10
31 34D2A-0,5-8-16 ..
Washer
3
32 3402-1,5-7-14 ..
Washer
4
33 1,5x10-002
397-66
..
Cotter pin
6
34 1,5x25-002
397-66
..
Cotter pin
3
35 2x25-002
397-66
..
Cotter pin
3
36 26-5300-80 . 43 Cable fairlead on frame No. 43 I
37 26-5300-81 ..
Pair lead
I
38 26-5300-82 ..
Pairlead
I
39 26-5300-83 ..
Cover plate
I
40 3051-4-20 ..
Bolt
2
41 30244^8-26 ..
Bolt
2
42 3373-4 ..
Nut
2
43 3374-8 ..
Nut
2
44 3401-0,8-4-10 ..
Washer
4
1 - 45 3402-1,5-8-16 ..
Washer
3
46 26-5300-220-1 .
Left-hand control rod, assy
I
47 26-5300-220-2 .
Eight-hand control rod, assy
I
48 24-5300-37 ..
Fork, assy
I
49 24-5300-37-3 ...
Fork
I
50 241457-5-7-3-2 ...
Bush
2
51 24-5300-39 ..
Fork, assy
I
52 24-5300-39-3 ...
Fork
I
53 241457-5-7-3-2 ...
Bush
2
54 24-5300-31
Nut
I
55 24-5300-33 ..
Ring
I
56 24-5300-34 ..
Sleeve
I
57 3320-8 ..
Nut
I
58 3327-5 ..
Nut
I
59 838251-1 ..
Sleeve
I
60 240657-7-9-14 ..
Bush
I
61 3402A 0,8-5-10 ..
Washer

62 736AH-31-1269 ..
Tube, left
I
  736AB-31-1157 ..
Tube, right
I
1 - 63 745AB-27 ..
Rivet
4
64 1,5x15-002
397-66
..
Cotter pin
I
65 26 .. ( 100/5)
Ball bearing (delivered according to 100/5)
2
66 24-5211-0-1 .
Locking system control cable, assy
I
67 26-5211-0 .
Locking system control, cable, assy
I
68 3027-5-22-3 .
Bolt
4
69 050-3-34 .
Bolt
14
70 3166 -4-7 .
Screw
26
71 3341A-5 .
Nut
8
72 3373-3 .
Nut
14
73 3401-0,8-3-6 .
Washer
16
74 3402-0,5-7-12 .
Washer
28
75 3402-0,8-5-10 .
Washer
6
76 6057056-4,2 .
Bonding washer
26
1 - 77 240C50-6 .
Coupling
4
78 817AB-26 .
Bolt
26
79 8I8AH
.
Nut
26
80 .
Elevator control rod
I
81 .
Rudder control rod
I
82 .
Rudder control rod
I
83 .
Rudder control rod
I
84 .
Elevator control rod
I
85 .
Elevator control rod
I
86 .
Rudder control rod
I
87 .
Rudder control rod
I
88 .
Elevator control rod
I
89 .
Rudder control rod
I
90 .
Elevator control rod
I
1 - 91 .
Rudder control rod
I
92 .
Elevator control rod
I
93 1000AH-1-70-140 .
Bonding atrip
I
94 100-1-110-280 .
Bonding strip
2
95 99-1-90 .
Bonding strip
I
96 99-1-100 .
Bonding strip
4
97 100A-1-80-160 .
Bondign strip
5
98 10-1-80-220 . ( 38)
Bonding strip (for frame No. 38 only)
I
99 1,525-002
397-66
.
Cotter pin
26
100 1,5x15-002
397-66
.
Cotter pin
8
101 1-
792-67
.
Locking wire

AR

102 24-5304-20 .
Bracket with bellcrank in L.H. elevator section
I
103 24-5304-160-1 .
Control assy rod, right
I
104 24-5304-160-2 .
Control rod assy, left
I
105 3027-5-24-3 .
Bolt
2
1 - 106 3027-5-26-3 .
Bolt
2
107 34Q2A-1-6-12 .
Washer
2
108 26-5302-50 . 43
Bracket with pulleys on frame No. 43
I
109 24-5300-51 ..
Bracket
I
3027-7-40-3 ..
Bolt
I
11I 3021A-5-16 ..
Bolt
4
112 3373-5 ..
Nut
4
113 3341A-6 ..
Nut
I
114 3401-0,8-5-10 ..
Washer
6
115 3401A-2-7-14 ..
Washer
I
116 3402A-1,5-6-12 ..
Washer
I
117 1,5x10-002
397-66
..
Cotter pin
2
118 1,5x20-002
397-66
..
Cotter pin
I
119 258-38 ..
Safety pin
I
120 47250-50-7 ..
Pulley
2
