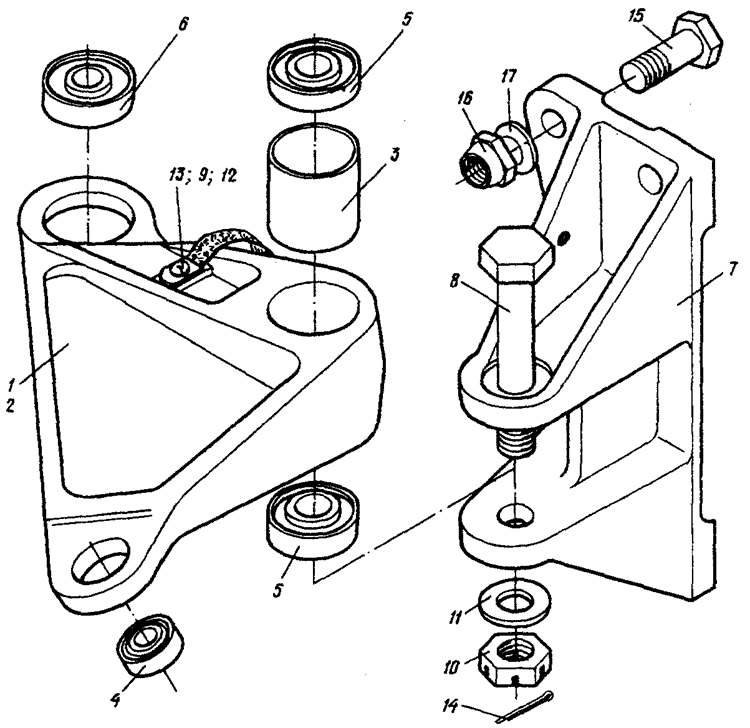

Fig. 2. BRACKET WITH BELLCRANK IN ELEVATOR RIGHT-HAND SECTION



.
Figure and item No.

Part number

Nomenclatu re
1234567
K-o

Units per Assy
Effectivity
  26-5304-10 (. 6.3, . I, . 4)
BRACKET WITH BELLCRANK IN ELEVATOR RIGHT-HAND SECTION (See 6.3, Fig. 1. Item No. 4)

2 - 1 26-5303-90 .
Bellcrank, asay
I
2 26-5304-90-3 ..
Bellcrank
I
3 24-5I09-11-1 ..
Bush
I
4 5 .. ( 100/5)
Ball-and-socket bearing (delivered according to 100/5)
I
5 980077 .. ( 100/5)
Ball-and-socket bearing (delivered according to 100/5)
2
6 H7981065 .. ( 100/5)
Ball-and-socket bearing (delivered according to 100/5)
I
7 24-5304-11 .
Bracket
I
8 3027A-7-50-3 .
Bolt
I
9 3166A-4-6 .
Screw
I
10 3341A-6 .
Nut
I
2 - 11 3402A-0,5-6-12 .
Washer
I
12 6057056-4,2 .
Bonding washer
I
13 100AH-1-80-180 .
Bonding strip
I
14 1,5x20-002
397-66
.
Cotter pin
I
15 3017-5-18 .
Bolt
4
16 3373-5 .
Nut
4
17 3401-0,8-5-10 .
Washer
4
