Mi-8MSB

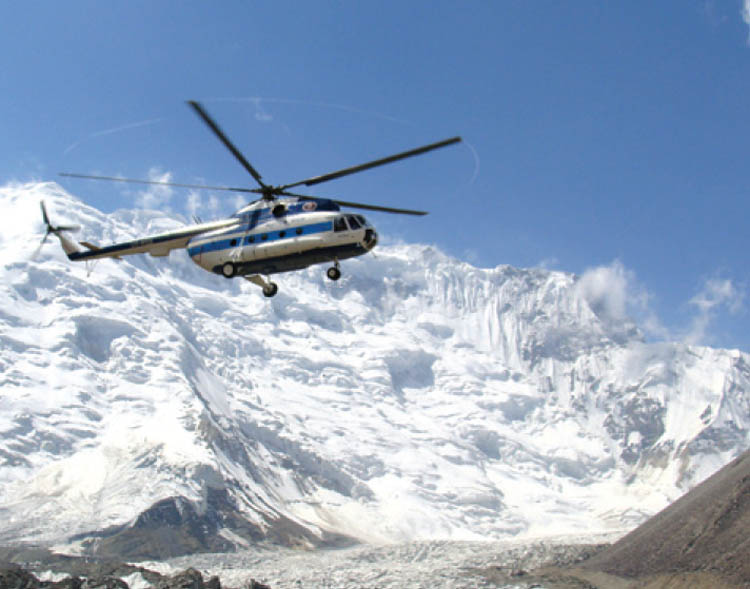

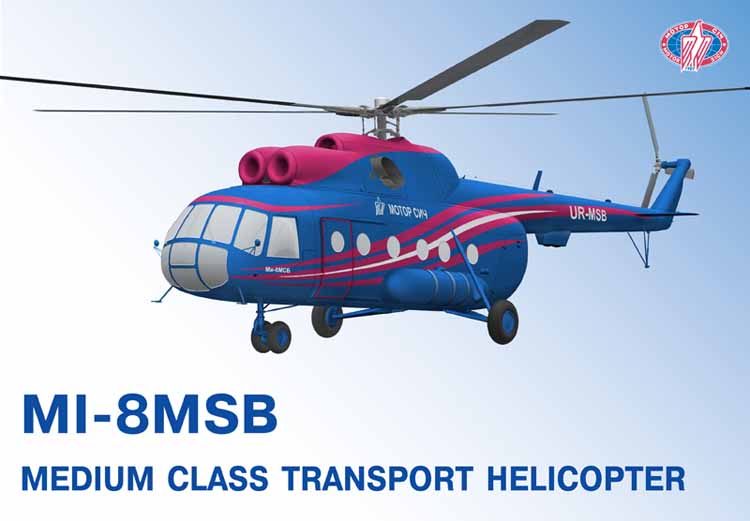

Mi-8MSB Medium class transport helicopter

In August 2013, Mi-8MSB helicopter powered by TV3-117VMA-SBM1V Series 4Е new generation engines established a set of world records (per FAI classification)

Цена: $ 7 600 000

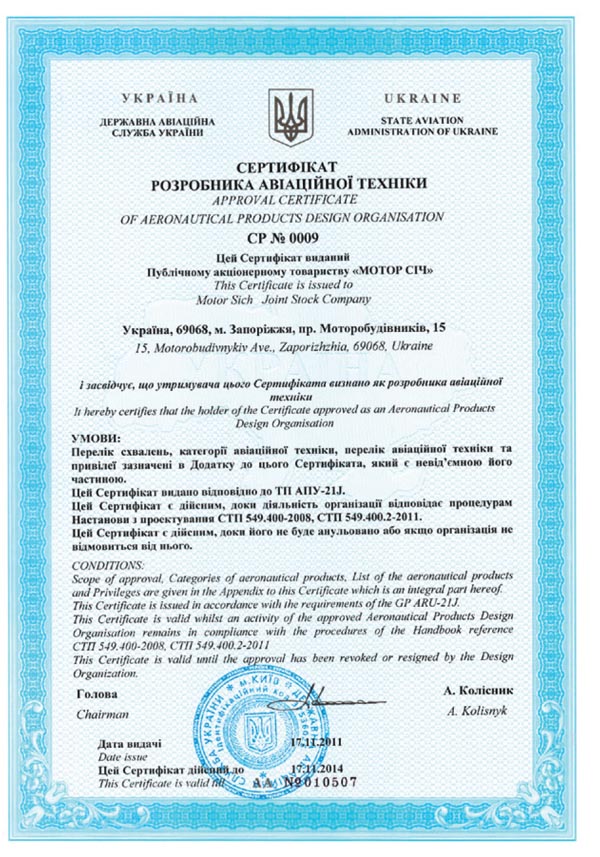

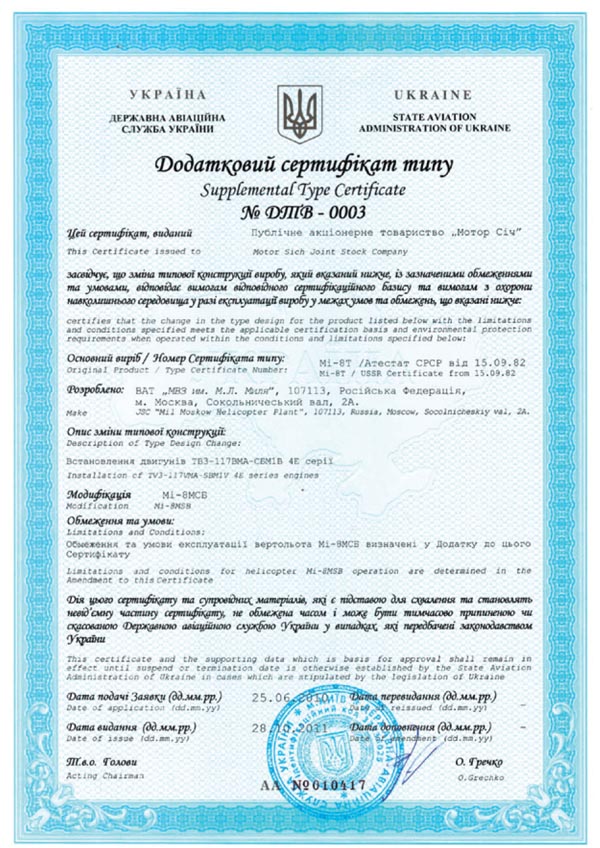

In 2011, the State Aviation Administration of Ukraine issued to Motor Sich JSC Certificate CP No. 0009 for designer of aviation equipment and Additional type certificate No. ДТВ-0003 for the Mi-8MSB helicopter.

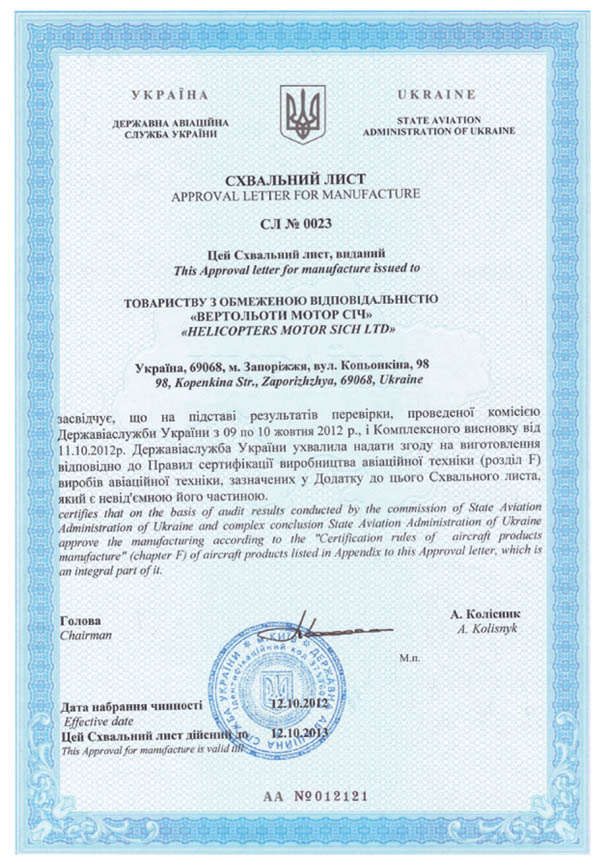

Helicopters Motor Sich Ltd was founded for promotion of own aviation products and mastering of new business activity. The main function of this specialized subdivision consists in organization of production of own high-performance helicopter. In 2012 the helicopters production was certified by the State Aviation Administration of Ukraine.

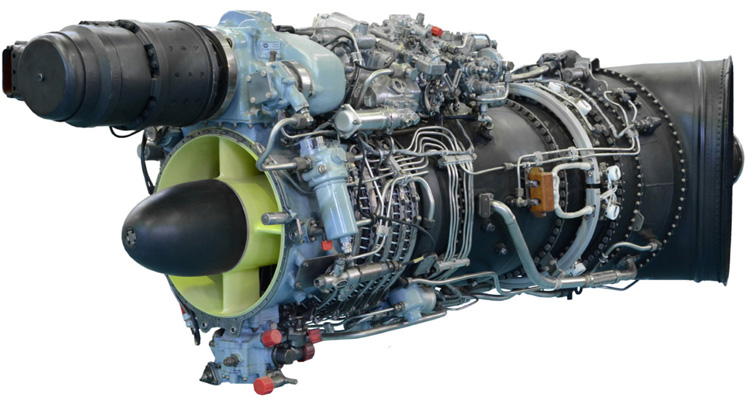

MAIN CHARACTERISTICS OF TV3-117VMA-SBM1V,
SERIES 4E, ENGINE

The turboshaft engine with one-shaft gas-generator and free turbine maintains power flat rated to high values of ambient air temperature, deployment and flight altitudes comparing with existing TV2-117 helicopter engines.

2.5-min OEI power rating, Continuous OEI 1 power rating — 60 minute (Cont 1) (H=0, Mf|=0, ISA +20C):
Power, hp (kW)................................................. 1,700 (1,251)

Continuous OEI 2 power rating — 60 minute (Cont 2) Take-off power rating Continuous take-off power rating (30 min) (H=0, Mf|=0, ISA):
Power, hp (kW)................................................... 1,500 (1,104)
flat rated up to tamb, °C....................................... +55
Specific fuel consumption, kg/hp-h......................0.251

Maximum continuous power rating (H=0, Mf|=0, ISA):
Power, hp (kW).................................................. 1,200 (883)
flat rated to tamb, °C........................................... +60
amb
Specific fuel consumption, kg/hp-h..................0.266

Cruise power rating (H=0, Mf|=0, ISA):
Power, hp (kW)................................................ 1,000 (736)
flat rated up to tamb., °C.................................. +60
amb
Specific fuel consumption, kg/hp-h 0.280
Engine dry weight, kg.................................... 295

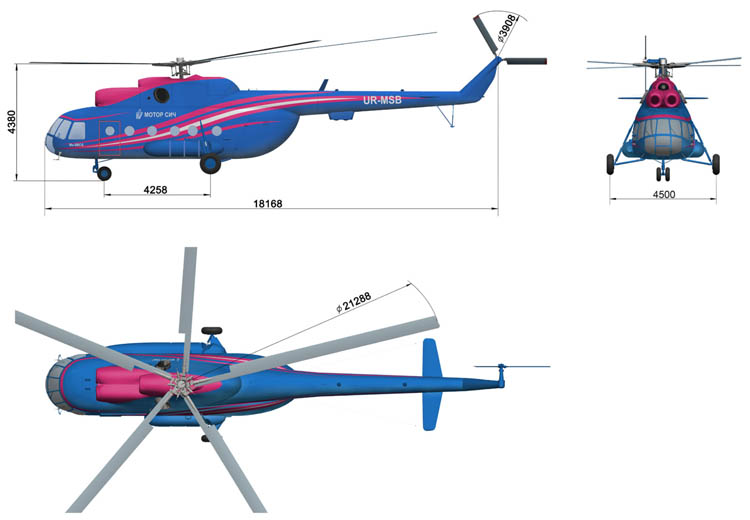

OUTLINE DRAWING AND PRINCIPAL DIMENSIONS

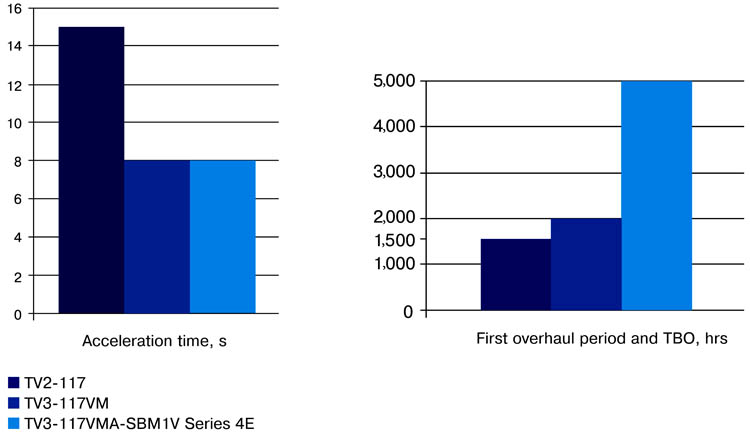

COMPARATIVE CHARACTERISTICS OF ENGINES

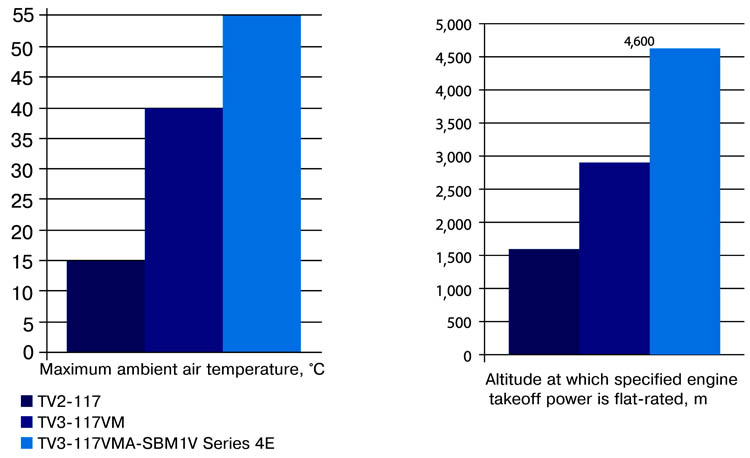

Environmental conditions at which engine takeoff power is flat-rated

COMPARATIVE CHARACTERISTICS OF ENGINES

COMPARISON OF OPERATIONAL PARAMETERS OF HELICOPTERS

  Operational parameters Mi-8T Mi-8MSB
1 Engine type  TV2- 117A  TV3- 117VMA- SBM1V, series 4E
2 Engine take-off power rating, hp 2 x1,500 2x 1,500
3 Engine starting system electric electric
4 Service ceiling, m
- with take-off weight of 9,000 kg or less
4,500 7,300
5 Hourly fuel consumption with standard take-off weight at 1,000 m (at indicated airspeed of 180 km/h) 580 500
6 Maximum take-off weight, kg 12,000 12,500
7 Standard take-off weight, kg 11,100 11,100
8 Maximum weight of cargo transported in the compartment (due to fuel quantity reduction), kg 4,000 4,000
9 Maximum weight of cargo transported on external load, kg:
- hinge-pendulum
- rope
2,500
3,000
2,500
3,000
10

Cruise speed at a height up to 1,000 m, km/h:
- with standard take-off weight
- with maximum take-off weight

220-230
205-215
220 to 250
205 to 215
11 Maximum speed at a height up to 1,000 m, km/h 250 280
12 Practical range with 10,000 kg take-off weight at 3,000 m (with fuel weighing 1,450 kg), km 470 550
13 Practical range with standard take-off weight at 3,000 m with two extra fuel tanks (with fuel weigh­ing 2,500 kg), km 1,060 1,210
Note: With regard to operational flight range the Mi-8MSB helicopter is highly competitive with the Mi-8MT (Mi-17) and Mi-8MTV (Mi-17V-1) versions.

In August 2013, Mi-8MSB helicopter powered by TV3-117VMA-SBM1V Series 4E new generation engines established a set of world records (per FAI classification) at Kirovskoye airfield, Autonomous Republic of Crimea, city of Feodosiya:

  1. Absolute world record in E-1 class (helicopters):
    -
    maximum altitude at level flight - 9,150 m;
  2. Records in E-1g subclass of E-1 class (weight from 6,000 kg to 10,000 kg):
    - maximum altitude reached without cargo - 9,150 m;
    - maximum flight altitude with a payload of 100 kg - 9,150 m;
    - maximum flight altitude with a payload of 200 kg - 8,420 m;
    - maximum flight altitude with a payload of 1,000 kg - 8,420 m;
    - maximum flight altitude with a payload of 2,000 kg - 7,525 m;
    - maximum flight cargo lifted to an altitude of 2,000 m - 3,019 kg.
  3. Records in E-1h subclass of E-1 class (weight from 10,000 kg to 20,000 kg):
    - maximum flight cargo lifted to an altitude of 2,000 m - 5,566 kg;
    - maximum flight altitude with a payload of 5,000 kg - 5,440 m.

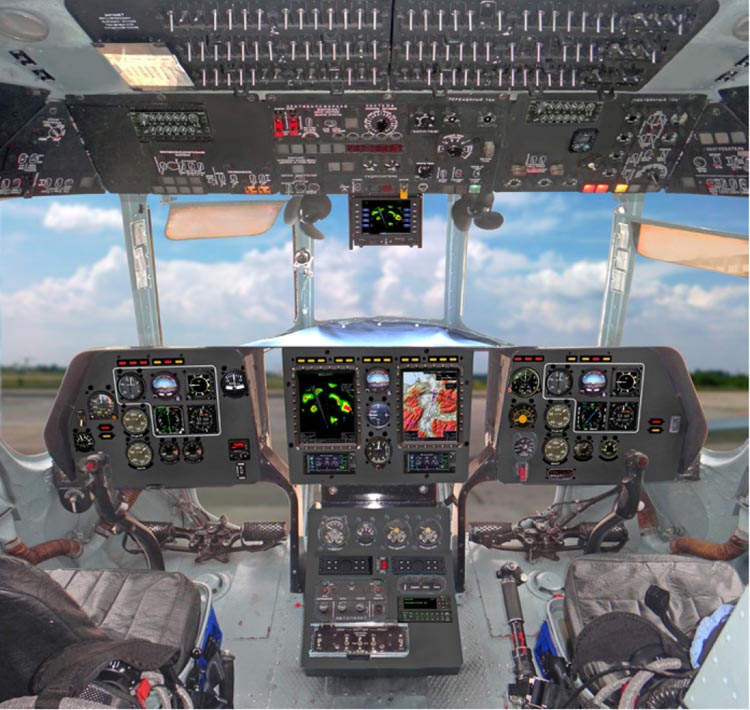

AIRCRAFT EQUIPMENT COMPLEX

The complex electronic hardware provides an opportunity for making day and night flights under ordinary and difficult meteorological conditions according to the instrument flight rules (IFR) taking into account the effective ICAO requirements.

         Resolved issues:

  • navigation by ground beacons VOR, DME, NDB;
  • landing according to the 1-st category using systems NDB, ILS, VOR, DME and marker beacon.
  • non-precision approach according to satellite navigation data GPS;
  • making flights under area navigation conditions B-RNAV (RNP-5);
  • making flights in vertical separation system with warning indication of deviations from selected altitude;
  • preprogramming of flight plan;
  • making flights according to search-and-rescue operations;
  • making low-altitude day and night flights in unknown unmarked areas, including mountainous areas, under ordinary and difficult meteorological conditions using the information received from HTAWS;
  • automatic flight data transmission to AT controller;
  • automatic flight data transmission to air traffic participants to take joint measures for prevention of collisions;
  • providing external communication in the VHF range with frequency spectrum of 8.33/25 kHz, internal communication between crew members, public address and talks between passengers and crew members;
  • providing external communication in the HF range;
  • providing monitoring of helicopter position and satellite communication.

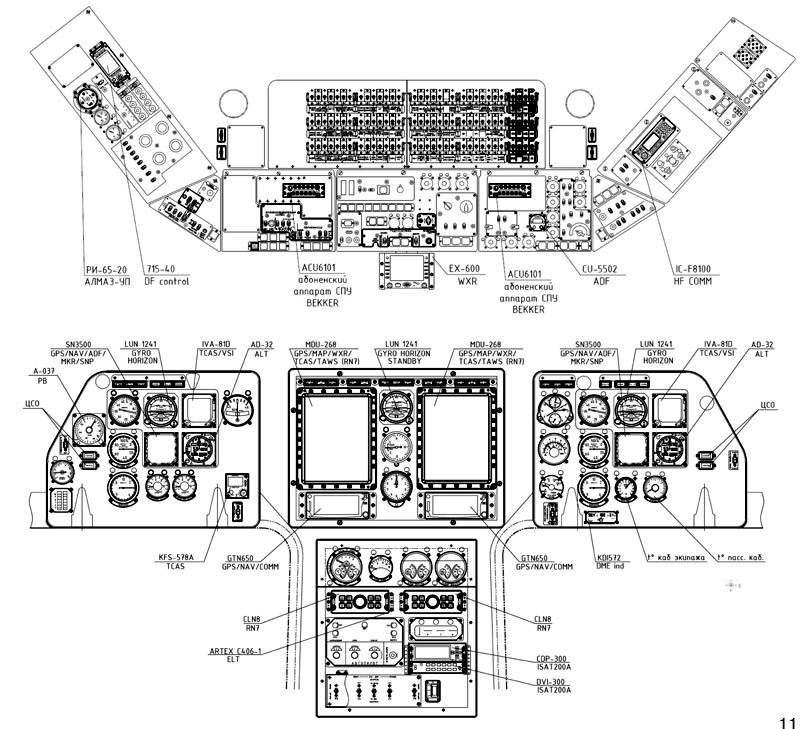

COMPLEX COMPOSITION

The Supplementary Type Certificates (STC) were obtained for all equipment of the Mi-8MSB helicopter

GTN650
Multifunctional navigation and communication equipment;
LUN1241
Gyro horizon;
SN3500
Horizontal situation indicator;
Almaz-UP
Airborne equipment for voice warning system;
KN63
Radio distance measurement equipment with indicator;
Aerox
Oxygen equipment;
ADF3502
Automatic radio compass;
Artex C406-1HM
Emergency radio beacon;
MKR3300
Marker beacon receiver;
DK140
Hydroacoustic beacon;
RDR2100
Meteo-navigation radar station;
CAS67A
Traffic collision avoidance system;
KVG-350
Vertical gyro;
BAS-V
Centralized warning system;
EX600
Multifunctional radar indicator;
DVCS6100
Digital voice communication system;
GTX33H
ATC transponder;
ISAT200A
Satellite communication and position monitoring system;
RN-7
Navigation and tactical graphic processor with function HTAWS;
IC-F8100
Communication radio;
MDU-268
Multifunctional displays;
DF-935
Radio equipment for orientation.
AD32
System for air data measurement, indication and warning of deviations from selected altitude;


Download presentation Mi-8MSB.pdf
